Ok, we have taken a look at the MSI Z68A-GD80 B3 and its design, and features. We uncovered a few things that gave us some concern. Will the board be able to handle being loaded up with cards or other devices? How will the relatively small number of PCIe lanes behave if we give them too much to think about at once? Well we are going to find that out as well as see how far we can push this board and our Core i7 2600k CPU. Let’s pick up where we left off and dive into the BIOS before we move onto the performance numbers.

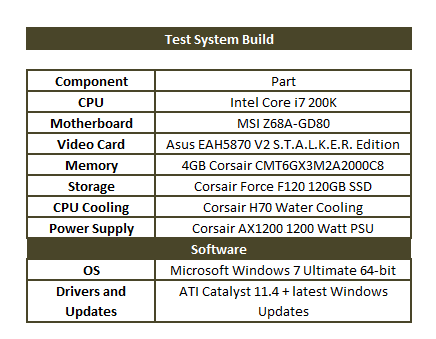

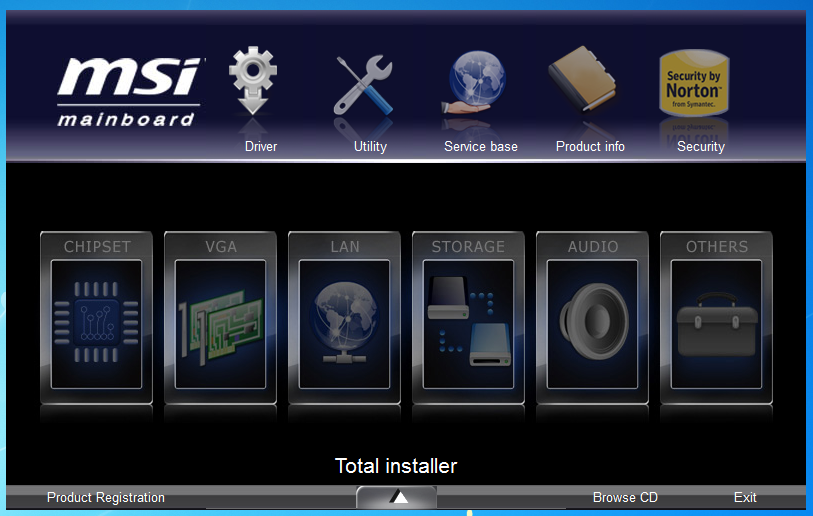

The Test System and Comments -Our test system is built on an open bench. This has two effects on testing. First it allows us to see everything and also to setup and disassemble the test rigs quickly. Second it means that we cannot gauge the potential air flow found in a normal case. The air is pretty stagnant; some may say this is a great neutral testing method and it can be. However, it does mean that the temperature reading taken off of the components are not accurate to what an average consumer would see. This means that your thermal performance will vary from what we see here. The Z68-GB80 B3 was (as is very typical now) easy to set up. We did not encounter any difficulties with RAM or power. The OS installation was quick and painless as was the driver installation. The MSI drivers disk (in addition to having games for the BIOS) has a decent installer which can get you everything or just the items you want depending on what you click.

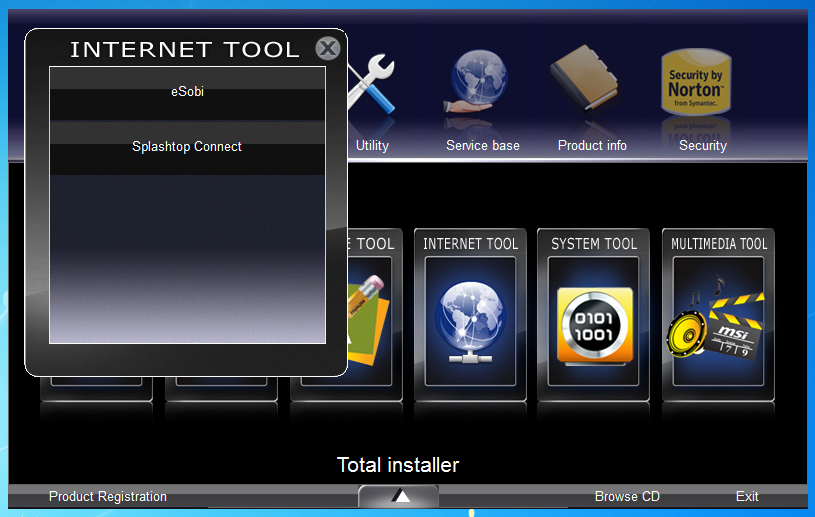

The selection of utilities and tools was also pretty nice. There are some that we would never use, but I am sure that someone will find them handy and put them to good use. Performance testing overview -Our testing is a little different than most. We combine both synthetic and real-world applications to simulate the types of performance common to the individual products. For motherboards this means that we run roughly six synthetic tests and two real-world. We will be expanding the real-world testing in the near future. But there is more to performance than just the raw numbers. As there are multiple components and sub-components on a motherboard there each item can have a distinct impact on the way the product will perform once you get it in your system. It is important to note not only the actual results but what they mean to you as a potential consumer. We will try to give this information to you. But we do not just cover the performance aspects that are measurable. We also talk about the components that might not have a direct benchmark. These are items like Audio Quality, ease of use and installation.
