Over the years the need for more storage has exploded. I have seen systems with 750GB drive packed with pictures, MP3s and movies not to mention actual work files. It has become borderline ridiculous. Still we need to have better access to more space to store our stuff. To help with this many companies have begun manufacturing network attached storage devices. These are multi-drive products that can be connected to a home or small business network and used as a central spot for file storage. We have covered a couple of them and have a few more to show you in the future. The problem with many of these is that to keep costs down they are often shipped without drives. Many think that they can just buy a bunch of drives of the same size and throw them in. That does not always work though; we have run into a few cases where the NAS device did not work with a single range of drives or need a certain firmware revision to work with the drives. It becomes a frustrating game of finding the right drives to work with your NAS and also to get the best performance out of it. To help with this Western Digital have come up with a line of disk drives that are designed specifically to work with NAS devices. These are their new WD Red Drives. The WD Red Drives will come in 1-3TB sizes and should fall into line between the WD Green and Black Drives in terms of performance and price. Western Digital has sent us three of their WD Red 2TB drives for us to try out in two of the NAS devices we have here, so let’s see how they do.

The Test System and Comments -
For our testing of the three WD Red drives we received we setup up our Synology DS1512+ in a RAID 5 configuration and also in a two drive RAID 1. After the testing was completed with the Synology we tried two of the drives out in our Thecus N2800 against the same 1TB Seagate Drives (ST1000DM003-9YN1). The version of DiskStation Manager installed on the Synology DS1512+was 4.0 (DSM 4.0-2197) while the software revision on the Thecus was 2.01.05. We used VMWare’s vShpere 5.0 with two hosts and our usual 20+ guests for the VMotion Testing. For all media and photo transfer testing we used a combination of AVI and Jpeg files that total about 24GB of data. These were accessed from various devices including Apple iPad and iPhone, Android Phones and Windows 7 PCs.

The file transfer tests were accomplished using the same 24GB of files that we later used for our media streaming and access testing. For network connectivity we used the most bandwidth possible and teamed the two 1Gbe LAN Ports using LACP (Link Aggregation Control Protocol) this was connected to a a pair of ports on out NETGEAR GS110TP 8-port PoE Switch. The pair of ports was setup to allow for LACP traffic (and in particular 802.11ad) to pass through as if they were one port.

Performance testing overview -
We test things a little differently here at DecryptedTech, we try to combine repeatable data with real-world usage to give you a much broader picture of how the device will perform when you get it back home or in your office. Numbers like MB/s and IOPs are not going to matter if the device is not easy to use and does not meet your set of requirements. This is why we spend a lot of time with each product to see how it performs over time and during different events (like power loss, losing network connection etc). Each of the tests below are intended to give you a broad picture of how well the WD Red performed under daily load, when maxed out and when trying to serve multiple requests.

Intel NAS Performance Test -

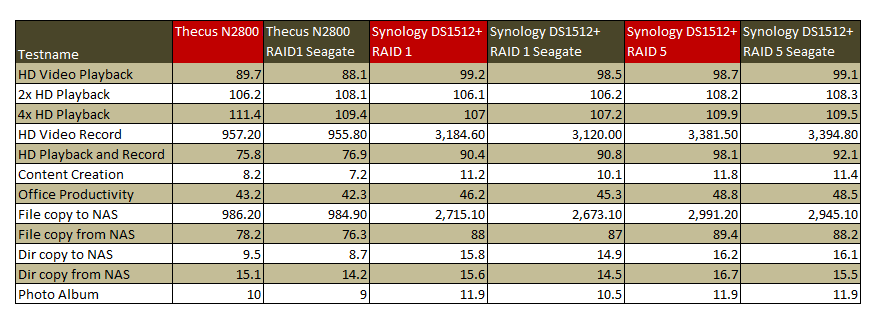

This test is a common test across the internet to find out the raw throughput of a Network Attached Storage device. To use this you have to setup a folder share on the device and allow the NASPT to read and write specific data back and forth to it. We ran this using all of the different RAID levels available to the 5-drive NAS. You can see the testing configuration and results below.  Looking over the RAW data it looks like there is little benefit to the WD Red drives. The NASPT numbers are very close across the board here but when you stop to consider that we are comparing 2TB drives to 1TB drives the performance data looks much more impressive (we did not receive our 2TB drives in time to complete this review, but will be posting a follow on to this comparing the same size drives).  Even with the size advantage on the side of the Seagate Barracuda drives the WD Red drives do an excellent job and outperform the smaller Seagate drives in many of the NASPT tests.

NASPT
VMware vSpere 5.0 VMotion -
Our testing with VMware has two parts to it. In the first we establish that we can create a new virtual system on the NAS using both iSCSI and NFS shares. From there we begin moving active servers back and forth between our two storage devices (the custom built NAS and the target or test NAS). We time how long it takes to move the servers between the devices and record the best times. All of the test servers (for movement) have the same size, thick provisioned with 120GB OS drives. We also have a final phase of the testing that we call “the plugs out” test. During this test we disconnect the NAS from the switch (disable the LAN ports on the switch) and then reconnect the system in normal usage the host should be able to reconnect to them without any data loss. If not then there is likely a problem with the way the system is buffering the information before writing to the drive.

Our VM transfer testing with the three WD Red drives was very good we found similar performance when directly compared to the 5 drive RAID 5 set that we ran on the DS1512+ Normally you can increase your write times by increasing the number of spindles you have in your RAID set. However thanks to the larger data buffer on the WD Red we did not see a drop in performance in our three drive set over the 5 drive set our transfer times were still around 20-30 minutes to move the same 120GB test VM across the network and commit it to the new set. Remember this is a live move of the server so the read and write operations are very critical to ensure the consistency of the server. For the RAID 1 set on the Thecus N2800 the WD Red actually speed things up a little moving the same server in 36 minutes Vs almost 40 for the Seagate 1TB drives. Both the WD Red and Seagate drives passed the network and power “plugs out” tests without any issues even with live servers on the system.

File Transfer-
As we mentioned before our file transfer testing involves a group of files (image and video files) that are around 24GB is total size. We send this to the target NAS and then copy them back over to see how quickly it can complete the task. We also send files back and forth to the target NAS during our streaming tests. Moving the 24GB of files to the two-drive RAID 1 set on the Thecus N2800 took about 15 minutes on the WD Red pair, but closer to 17 minutes for the Seagate pair. In the five test runs for this particular test the WD Red drives beat the Seagate drives in all but one giving the advantage to the WD Red drives for the Thecus. On the Synology DS1512+ the times were about dead even when comparing the three drive RAID 5 sets although again the WD Red drives did managed to squeeze by (with a 15 -20 second lead) in three of the five test runs. Here the times were a little better at 12-13 minutes to complete the whole transfer.

Media Streaming -
For our media streaming we use our Windows 7 HTPC system (attached via a 1Gbe connection as well as an android phone and an iPad to view the files using the Photo Station package. For the HTPC we used the standard windows share to stream the media to the device. The media streaming on both Thecus N2800 and the Synology DS1512+ was very good. We did not run into any issues with our playback even on the lower powered tablets and our Galaxy Nexus phone. This was for both drive sets so we cannot really call a winner here in terms of performance, but we did note that the WD Red drives ran much cooler in the enclosures than what we saw with the Seagate Barracuda drives. This was consistent across all of our testing though.

Individual Drive Performance -
As we are not directly comparing the WD Red drives to another drive here the numbers presented are to get you an idea of the performance of the individual drivers

PCMark7 Storage Tests

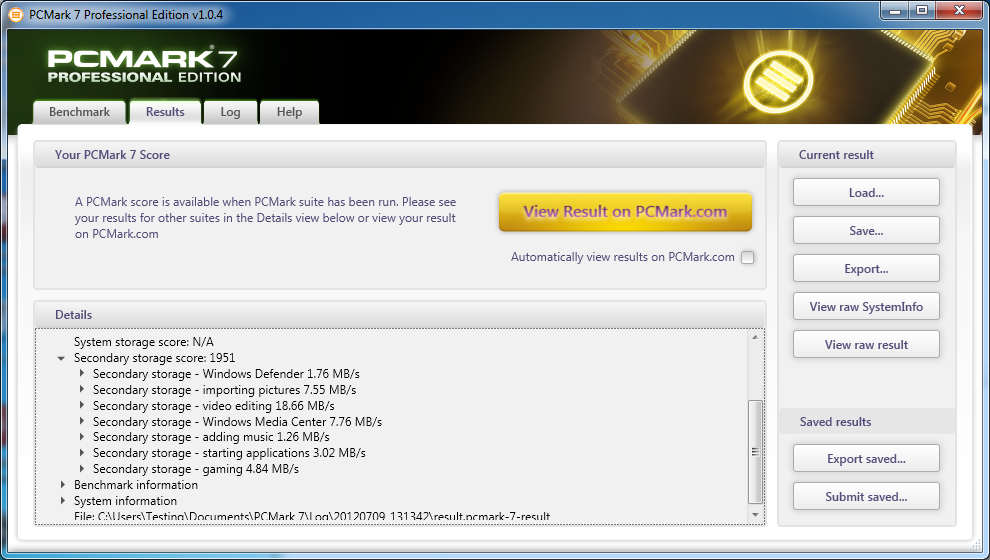

The PCMark 7 suite of storage tests is fairly intensive and includes scanning for malware, moving images, a video editing script and more items that require good HDD read and write speeds each one of these has its own transfer rate that will be recorded and combine to make up the overall score.
PCM7

Atto Disk Benchmark -
Under the Atto disk bench you get a series of tests run against the drive which have different sizes from 05KB to 80MB. We recorded the maximum transfer rate for both read and write. This was independent of the transfer size.
atto

HD Tune Pro 4.6 -

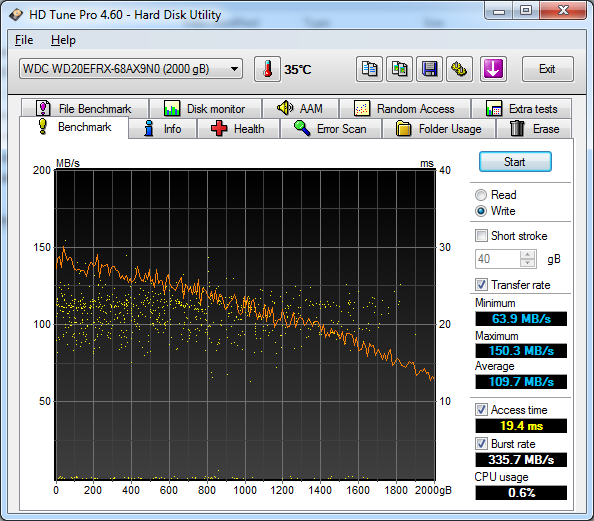

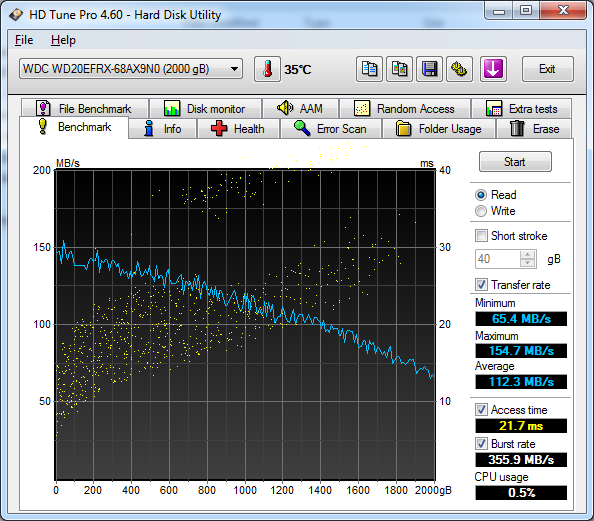

HD Tune Pro is another application that can give you the run down on your HDDs it performs both read and write tests although its write test is destructive and cannot be run on a drive that contains any partition information. For our testing here we ran both the read and write tests and recorded the average transfer rates.

HD Tune Read Performance HD Tune Write Performance
hdtune hdtune-write
