The Asus P8Z77-M Pro Brings Exceptional Performance and Value to the Lab - Test System and Comments

board04At almost the opposite end of the spectrum from the Asus Maximus V Gene (in terms of target market) we find the Asus P8Z77-M Pro motherboard. The P8Z77-M Pro is also a micro ATX board and despite being aimed at the lower end of the consumer market it shares some of the same features that the Gene has. You still get Asus’ Digi+ power controls and FanXpert+ along with Asus’ commitment to solid design and component selection. We have talked about most of these items in Part I of our review. Now we are going to focus on the performance you can expect when you pick up the P8Z77-M Pro along with Intel’s new Ivy Bridge CPU.



The Test System and Comments -

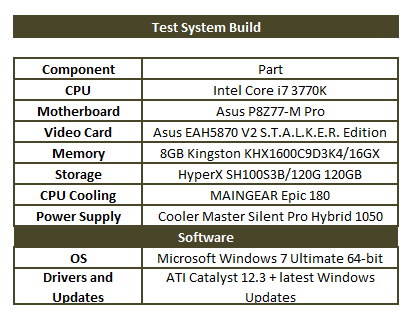

system
Our test system is built on an open bench. This has two effects on testing. First it allows us to see everything and also to setup and disassemble the test rigs quickly. Second it means that we cannot gauge the potential air flow found in a normal case. The air is pretty stagnant; some may say this is a great neutral testing method and it can be. However, it does mean that the temperature reading taken off of the components are not accurate to what an average consumer would see. This means that your thermal performance will vary from what we see here.

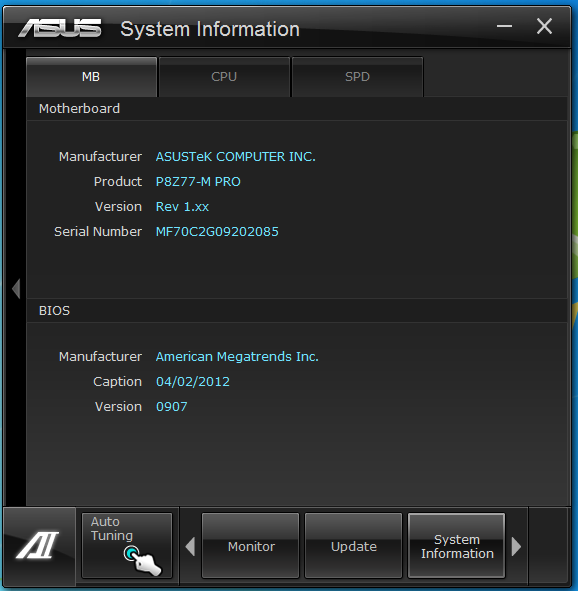

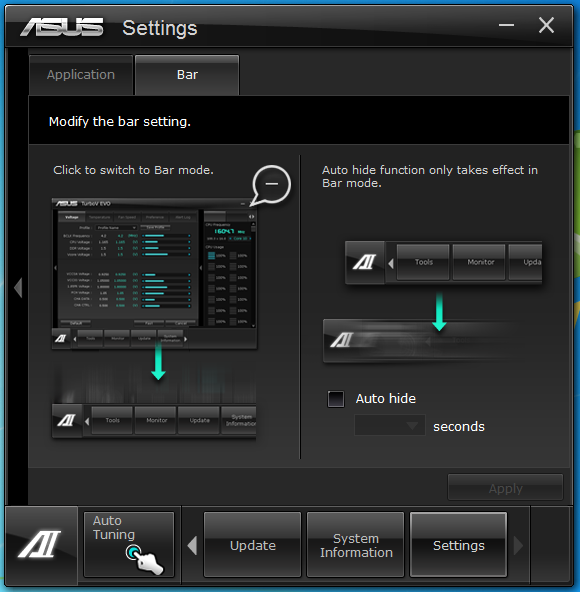

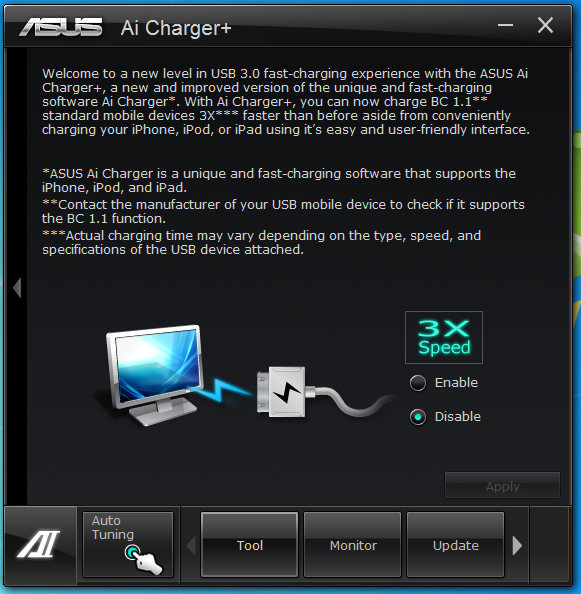

ais09 ais13 ais14

Our time with the P8Z77-M Pro was very nice (with the exception of the issue during overclocking we noted above). It is a clean board and the installer that comes on the DVD will get everything you need installed and running quickly. As this is at the lower end of the Asus line up the feature set is not as large as what we saw on the Maximus V Gene, but as we have said before it is still very nice for this level of product.

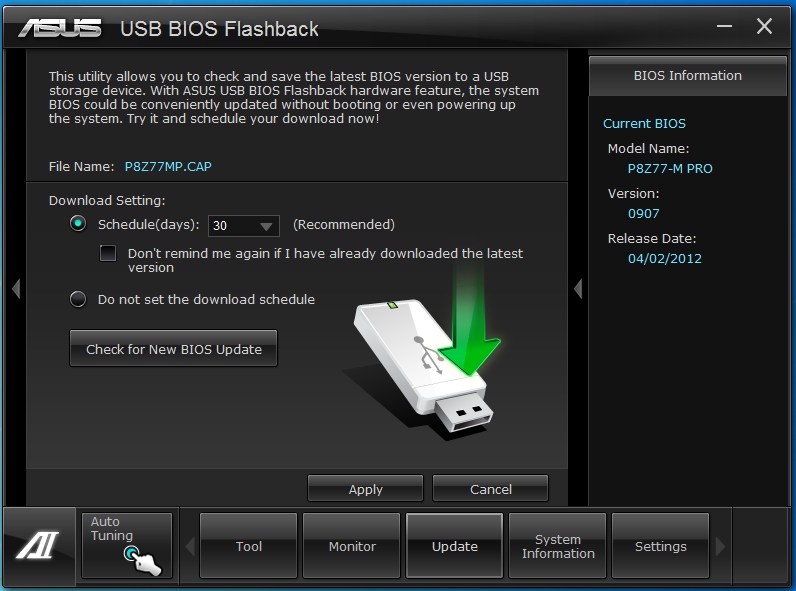

ais12
Performance testing overview -
Our testing is a little different than most. We combine both synthetic and real-world applications to simulate the types of performance common to the individual products. For motherboards this means that we run roughly six synthetic tests and two real-world. We will be expanding the real-world testing in the near future.  But there is more to performance than just the raw numbers. As there are multiple components and sub-components on a motherboard there each item can have a distinct impact on the way the product will perform once you get it in your system. It is important to note not only the actual results but what they mean to you as a potential consumer. We will try to give this information to you. But we do not just cover the performance aspects that are measurable. We also talk about the components that might not have a direct benchmark. These are items like Audio Quality, ease of use and installation.
