Asus has a flare for design and for choosing the right parts to go on their products. Over the years of working with them I have often had them tell me “wait for our design” instead of tinkering with the reference parts. The benefit of this is that the consumer usually gets a much better product in the end and we see the upper potential of a GPU, CPU or Chipset. We have walked you through the layout and design of the Asus Crosshair IV, now we are going to show you how well it performs.

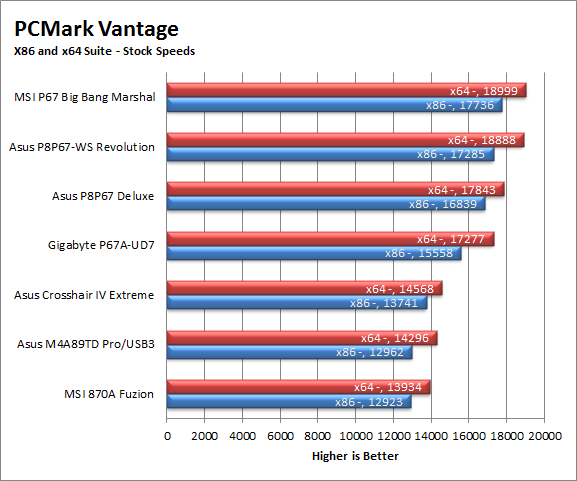

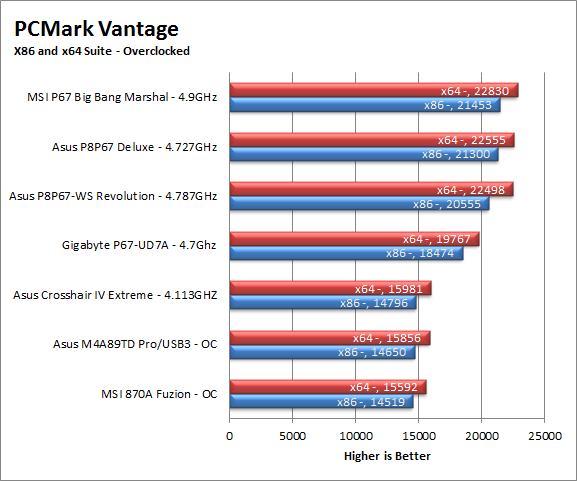

Section II - Performance Tests, Synthetic -In this section of testing we cover the synthetics. These are tests that run a scripted sequence of internal APIs or that use another installed application to perform a series of scripted events. They are great in that they can provide reproducible results across various platforms. On the down side, synthetic tests can be fooled with driver tweaks and optimizations. In some cases it is necessary to rename the .exe file to something generic to discover if this is the case. In any event when this is needed (when a test shows a drastic difference in performance over the renamed exe) we will note this and show both results for comparison. PCMark Vantage -PCMark Vantage is a suite of tests designed to test the power of your computer. It runs task that range from productivity to gaming (DX9 only). It is a great test to identify potential problem areas with general performance on a system. It can also show how well a single component can increase or decrease system-wide performance. We run both the x86 and x64 PCMark Suites for testing.
The Asus Crosshair IV did well in our PCMark Vantage testing. It ranked in the top three out of the boards we have tested. This is not too bad really although I can see where the memory speed has affected the performance results with this test.

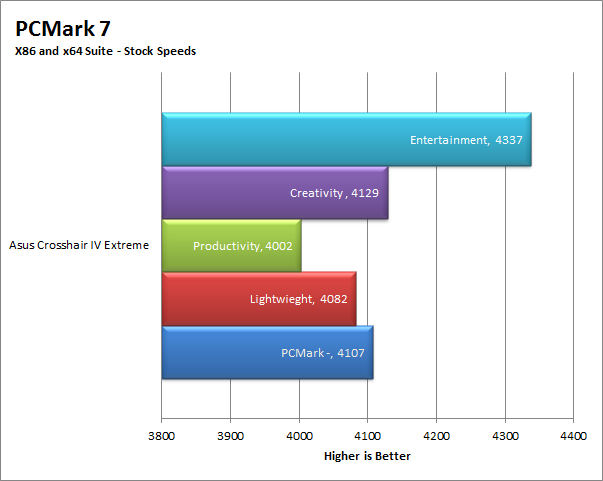

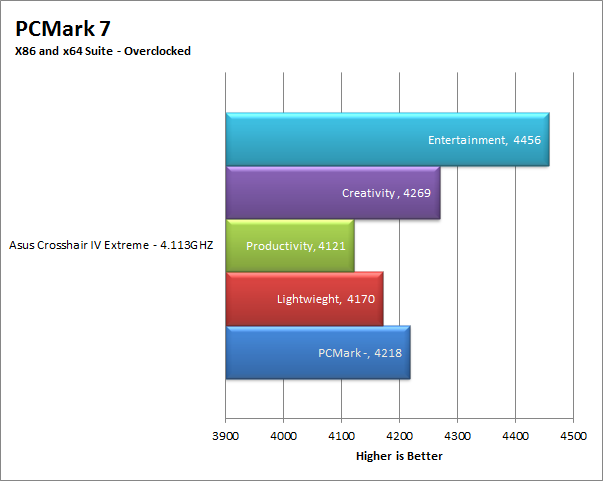

PCMark7 -PCMark7 is the latest general performance test from FutureMark. As each generation of this benchmark has evolved and developed we have watched them add more and more realistic tests to this suite. With this generation we find more media tests, (audio and video transcoding) moving of large files, multiple web page rendering, and much more (the even added DX10 gaming). We use the Overall Performance and Common Usage suites in our testing.
Although at this time we do not have anything else to compare these scores to directly, they are still fairly good. After we get a few more tests done in house we will be sure to return to PCMark7 and see how things stand.

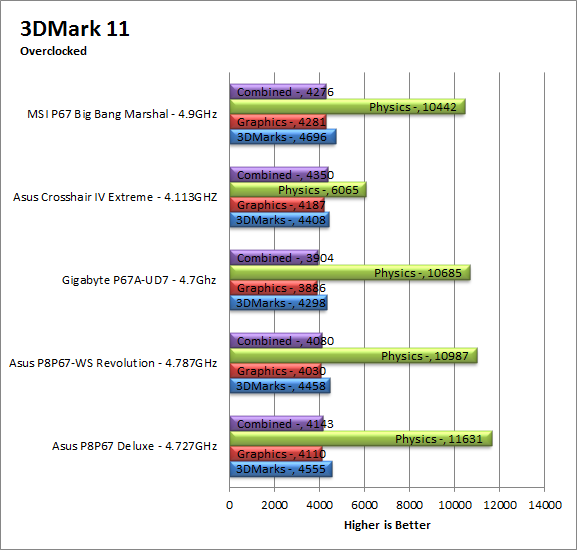

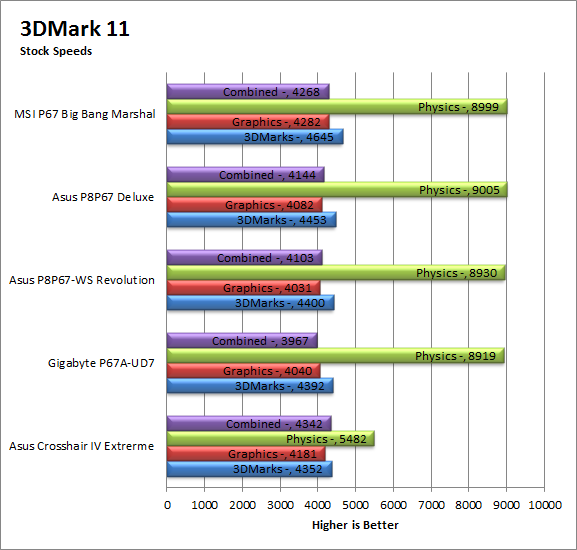

3DMark 11 -3DMark 11 is the other Futuremark test that we run on our motherboards. This test simulates the typical tasks that a GPU (and system) would have to perform to provide you with a good gaming experience. It is based on the DX9, DX10 and DX11 engines but can only be installed on Windows Vista or later. The suite of tests covers DX9, DX10, and of course DX11 rendering; it also covers AI computations and physics. That’s right I said Physics the latest version of 3DMark uses a Havok physics engine. This removes the advantage that nVidia had with 3DMark Vantage.
Here we are more than a little disappointed. We had thought that the combination of the Crosshair IV and the Asus 5870 V2 graphics card would give us some excellent scores. However at stock speeds we find the Crosshair at the bottom of the list by 40 points. It is only when we overclocked the CPU that the score picked up at all and managed to come in right behind the MSI Big Bang Marshal.

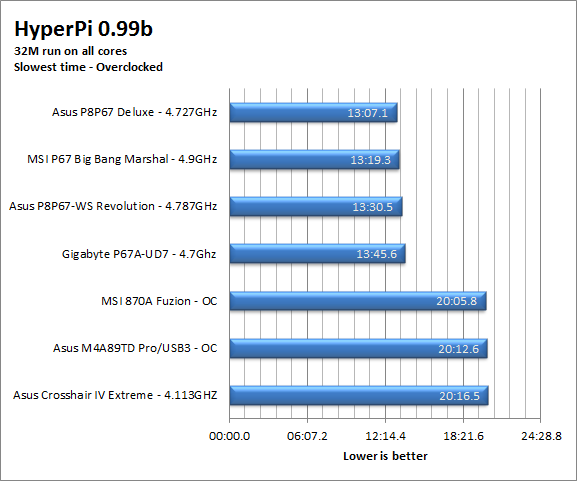

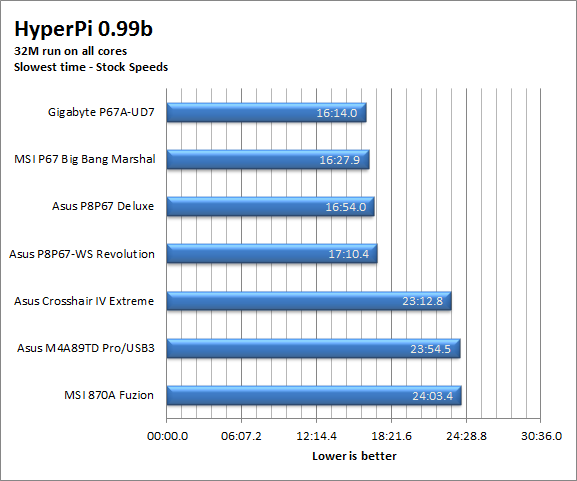

HyperPi 0.99b -HyperPi is a front end application that allows you to easily run multiple instances of the SuperPi application. SuperPi, for those that are not familiar with it, is an application that measures the time it takes to calculate the number Pi out to as many as 32 million places. This calculation is then checked and run multiple times (up to 24 for a 32M run). This test stresses the CPU, Memory and HDD as data is handed off between the three. If there is a weak link, HyperPi will show it. For our testing we run the 32M test on as many cores (and threads) as the CPU has available. The slowest CPU time is then recorded.
For an AMD board the Crosshair IV does well at HyperPI. At stock speeds it is at the top of the AMD group while it does not fare as well when we overclock the CPU.

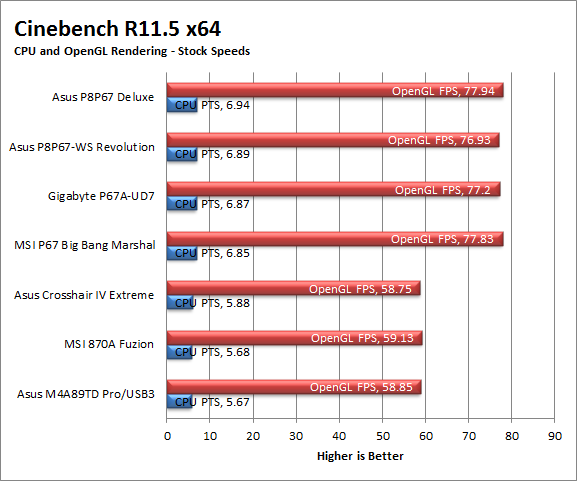

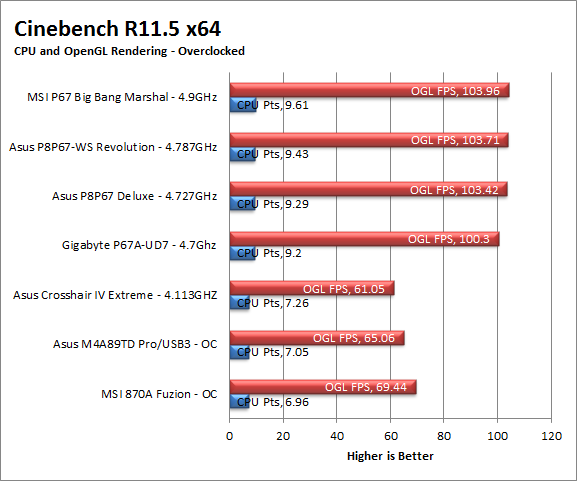

Cinebench R11.5 -Cinebench R11.5 is the 11th release of Maxon’s rendering test. This test is based off of the Cinema 4D engine, which is one of the industry standard tools for digital animation. It is a powerful product with many different modules that can be “plugged” into it to increase its effectiveness. With Cinebench you get to see how your computer would do using this application. There are two tests; one tests the CPU’s ability to render an image across multiple cores or threads. The other tests your systems ability to handle OpenGL based rendering.
Again we find the Asus Crosshair IV Extreme at the front of the AMD pack. We would have liked to see higher scores here, but they are still not too bad.
