Gigabyte Z97MX Gaming 5 Design and Feature Review - Layout

They say that competition is good for the soul, and they are right. In just about any area you can think of having a little competition makes you better at what you do. In the computer world this is especially noticeable when it comes to motherboards, even more so now that companies like Intel and AMD control the chipsets and their features. The push now comes down to performance tuning (at a very fine level) overclocking an additional features to entice the consumer into picking up a new motherboard. We have had a couple of Z97 based boards in the lab recently, but all have been from the same company. Now we have one in from Gigabyte in the form of the Z97MX Gaming 5. Let’s take a look and see if competition has driven Gigabyte to a higher standard.

The Layout -
The layout of any motherboard is important. Even simple mistakes in component placement or the signal traces can cause major issued in performance and stability. With the ATX form factor we find that this is even truer; the devices we drop onto them demand more and cleaner power while the signal speeds push faster and faster. Although the Gigabyte Z97MX Gaming 5 is not a normal sized ATX board it still packs a lot into the space available. As you can see from the image that follow and our video Gigabyte made sure that you are not missing much that you would get with a larger board. This is great for anyone looking to build a more compact system. However, we are getting ahead of ourselves so let’s kick off our normal walk around.
Z97MX-7

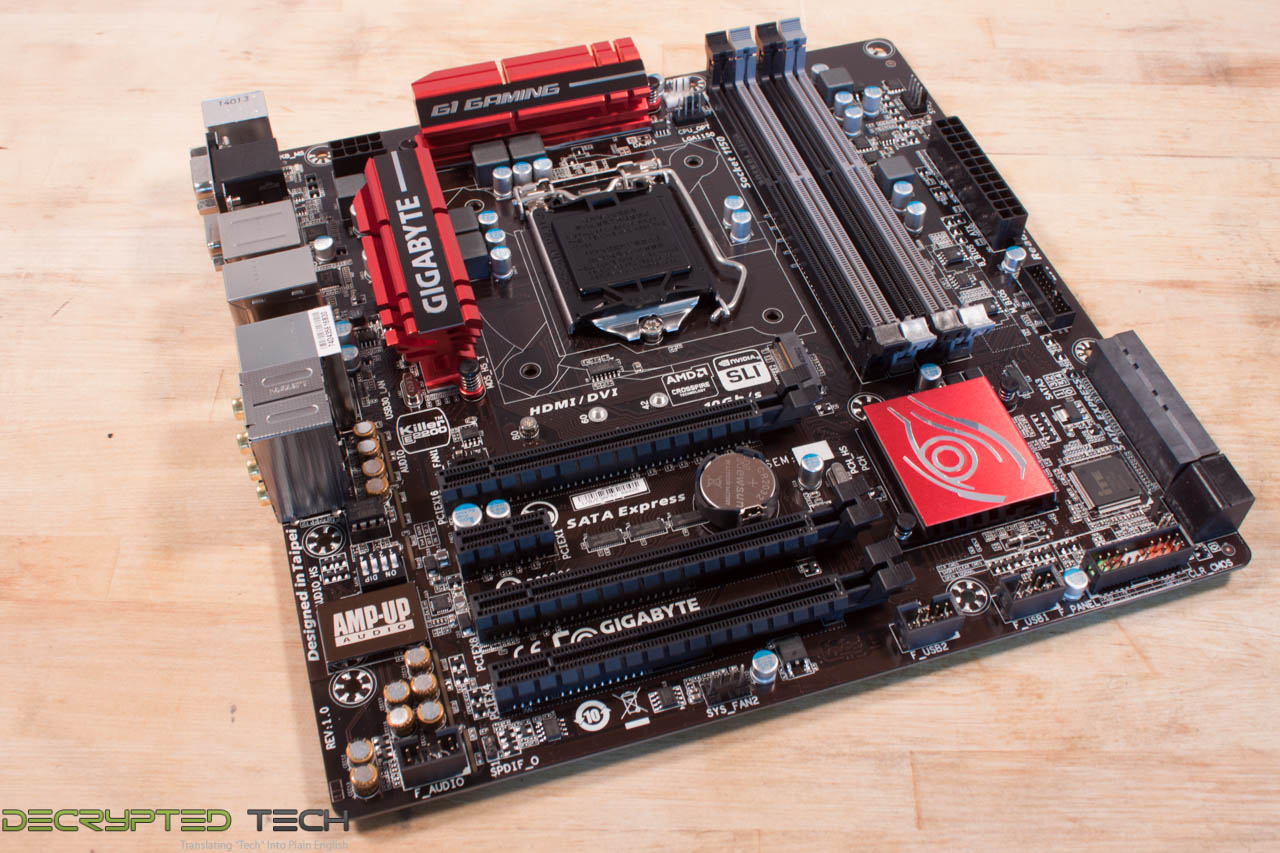

Starting off from the upper right of the board we find a fairly normal layout. RAM slots, power regulation, USB 3.0 header and a 4-Pin PWM fan header all look good. One thing that is interesting in this area is the dual BIOS chips. Normally these are on the lower half of the board, but Gigabyte has chosen to drop them in up here. We doubt there will be any issues with this, but it is something to note.
Z97MX-8

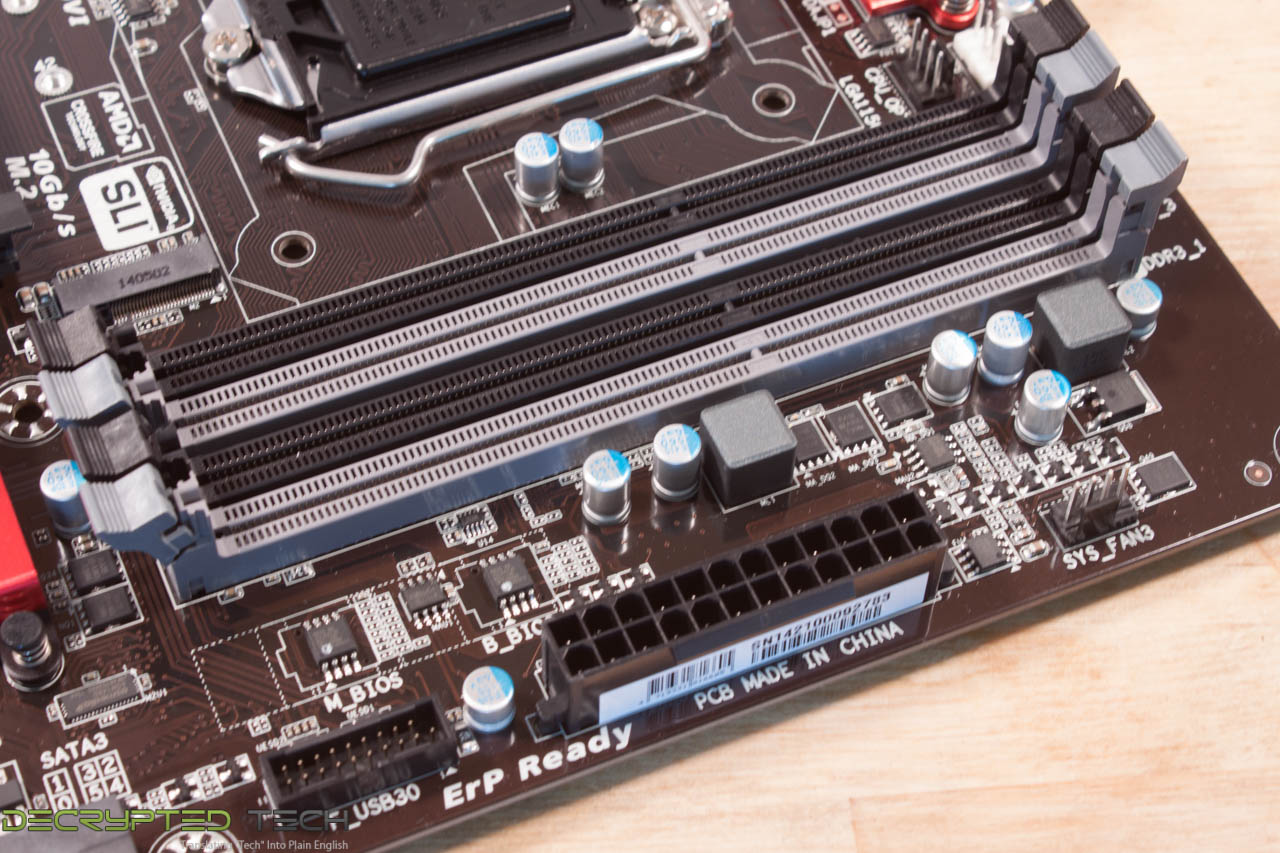

Moving over just a little bit we see the area around the LGA1150 socket. It is a fairly clean area with enough room for most of your modern coolers. If you are planning to use a very large air cool you might want to check clearances for the RAM slots, but otherwise you should be ok.

Z97MX-9 Z97MX-10

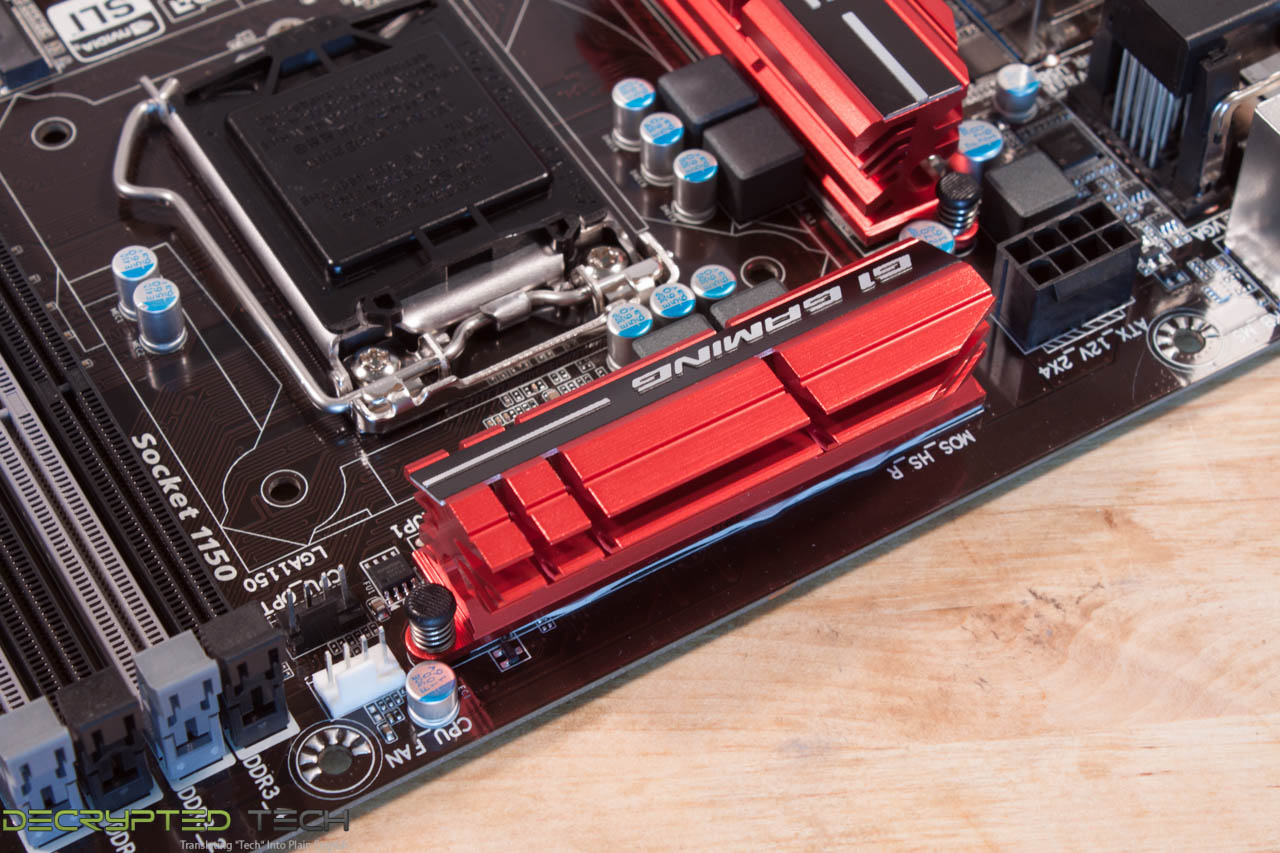

You will also notice that Gigabyte has given you two 4-pin fan headers in this area just for the CPU and they have also moved the 8-pin aux power connector over a little so that you should be able to get things plugged in without losing too much skin.
Z97MX-11

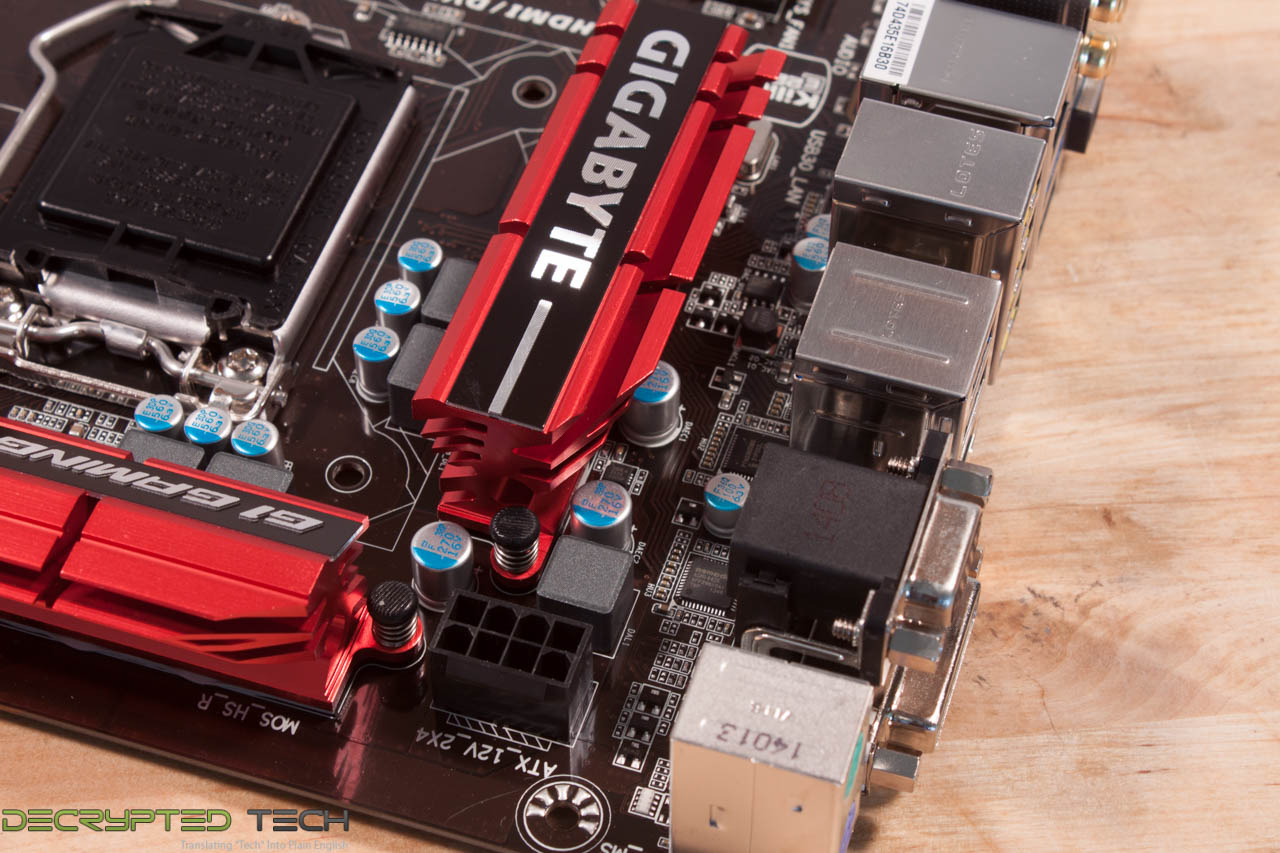

Looking at the lower half of the board we find four PCIe slots, three x16 mechanical and one x1. The X16 slots are not all x16 electrical though. Only the top on has full 16 lanes attached. When running SLI or Crossfire you are going to end up running dual x8 which is not really going to make a noticeable difference in your gaming performance. The final x16 mechanical slot is setup as x4.
Z97MX-12

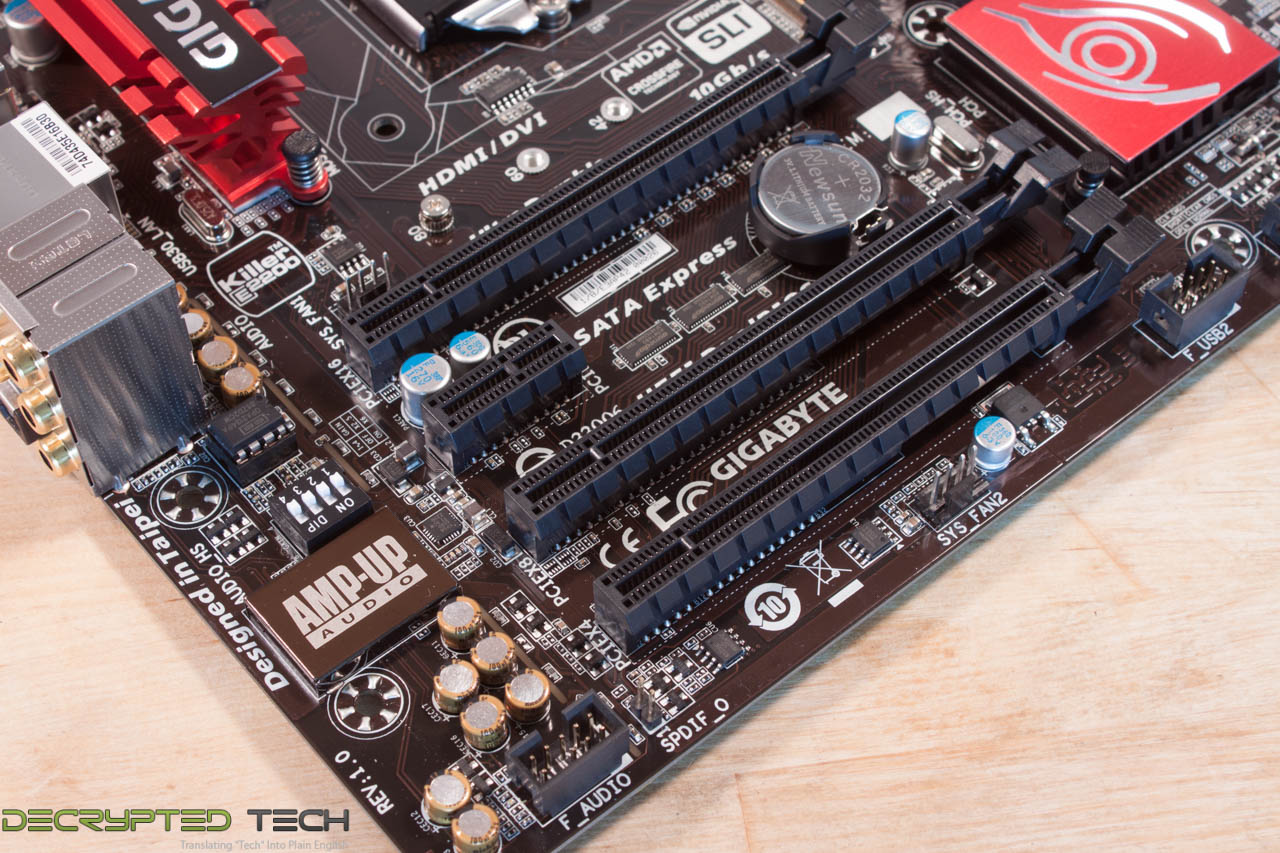

Another item you might notice in this area is the separated audio hardware including filter capacitors, a Burr Brown Operational Amplifier (OPAMP) more. All of this is physically segmented by a lighted strip (seem familiar?) as a visible indicator that your audio components are separated from the rest of the board. Gigabyte even went so far as to run the traces for right and left channels on different PCB layers to add an extra level of separation.

Z97MX-12 Audio

The dip switches you see are not a throwback to the old days, they are a form of manual gain for the line out jack. This is important when using some higher-end headphones. By changing the gain you can get more out of them in terms of real audio. By default they are set to 2.5x, but you can kick it up to 6x by flipping all of the switches to the on position. You should remember to set the switches to all on or all off, having a mix will not work. This should make that “good enough” audio into something else.

Another hidden gem in this section of the board is the Qualcomm Atheros Killer E2201 LAN processor. This used to be known by another name, KillerNIC, but after being bought out by Qualcomm things have changed just a little. The E2201 is able to build certain QoS (Quality of Service) profiles internally. These profiles help when it comes to making sure your gaming packet receive priority over a network.
Z97MX-13

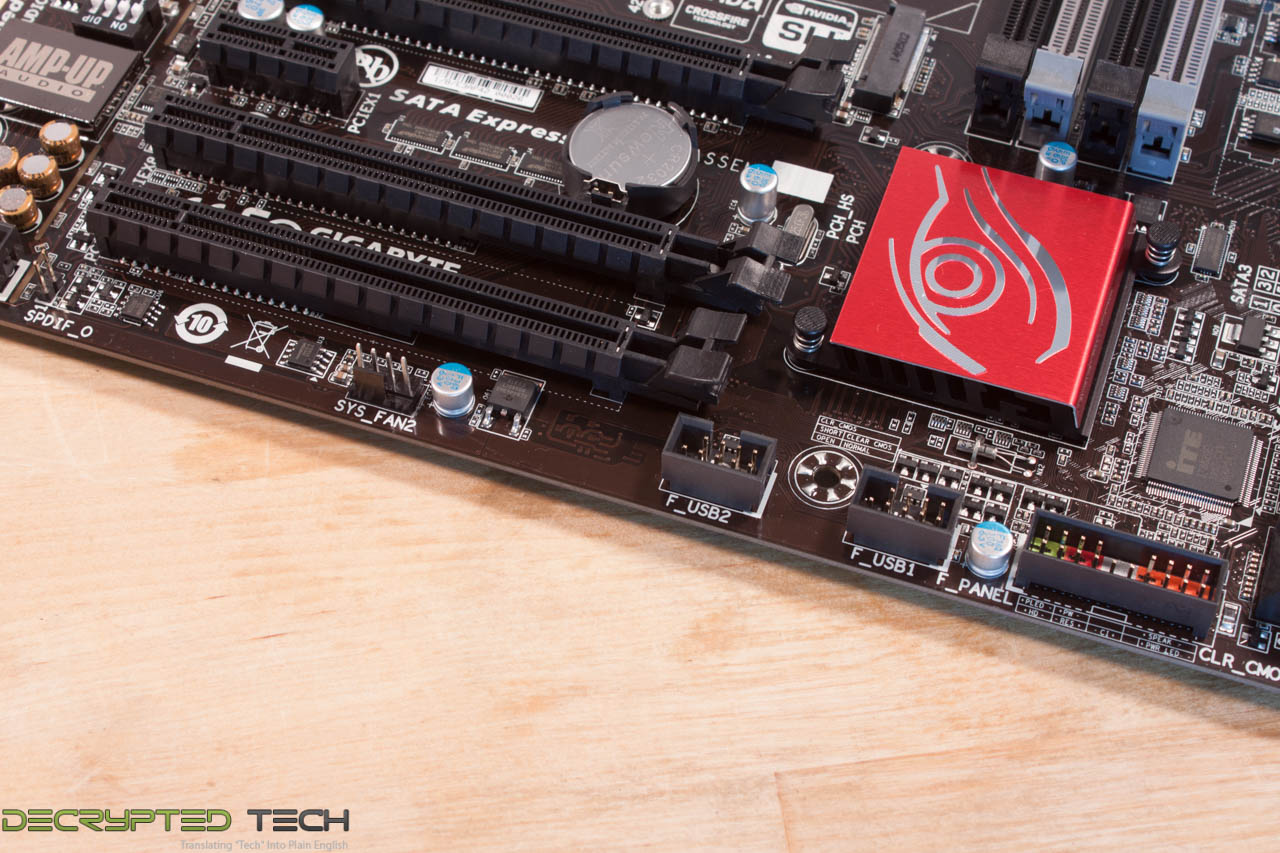

The along the bottom of the board we find some more common components like USB headers, front panel audio, front panel control headers and even a fan header.

Things do not get interesting until we take a look at the leading edge of the board where we find a SATA Express port. This combines with the PCIe M.2 SSD slot that it right under the CPU socket. It adds a nice performance option for storage if you have the money to drop on SATA Express or a PCIe M.2 SSD.
Z97MX-15

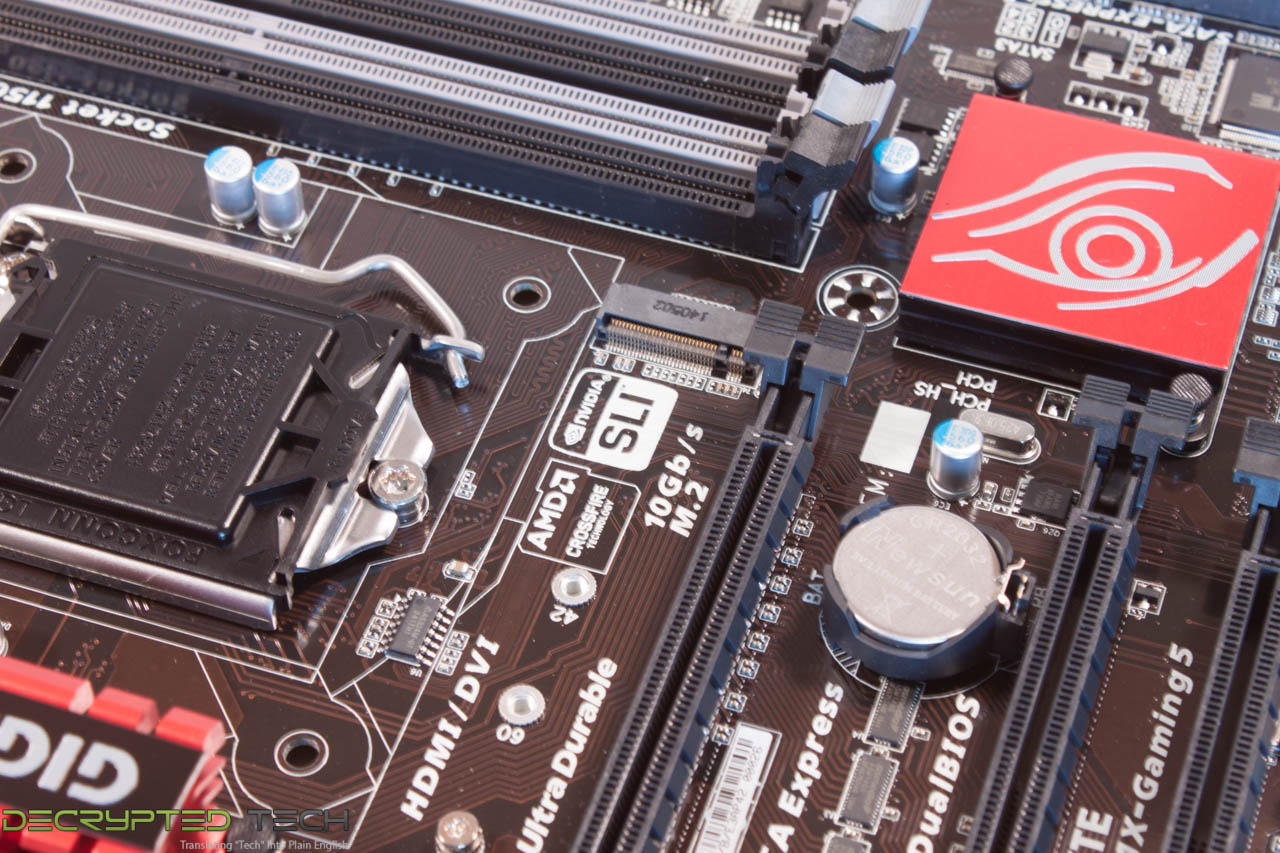

In all we are very impressed with the Z97MX Gaming 5 so far. About the only option that is missing is built in 802.11ac wireless. Of course when you consider this is a board built with LAN gaming in mind it really would not have made too much sense to build that in.
Z97MX-14

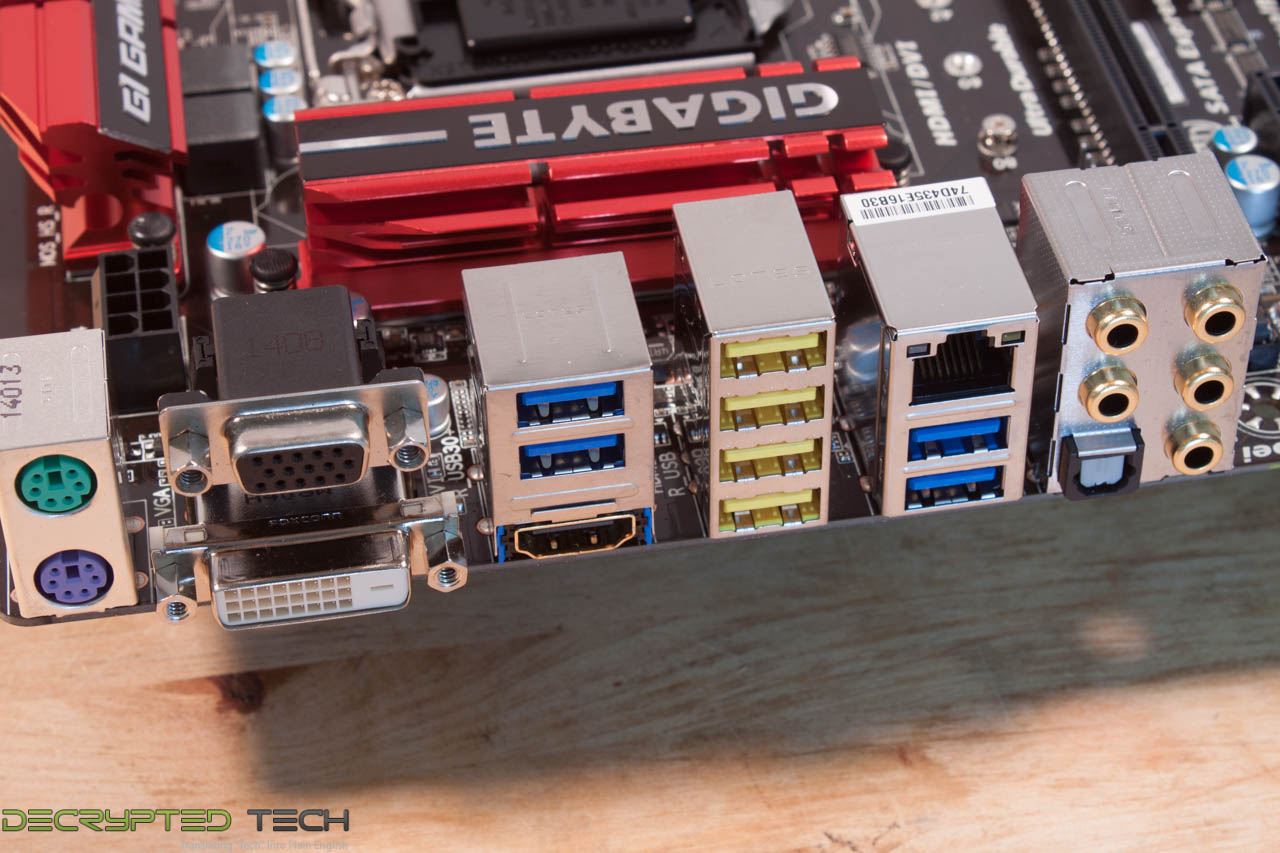

Heading around to the I/O ports we find some unusual departures from the norm. Gigabyte has given you two PS/2 ports (mouse and keyboard). Normally you get one combo PS/2 port and have to make everything else work with USB. Speaking of USB you get four USB 3.0 ports and four of what Gigabyte calls DAC-UP USB ports in a quad group. The audio ports are gold plated not just for looks, but also to add a little (very little) extra to the audio you get.

You can check out our video walk around below.
