The Box and Goodies -

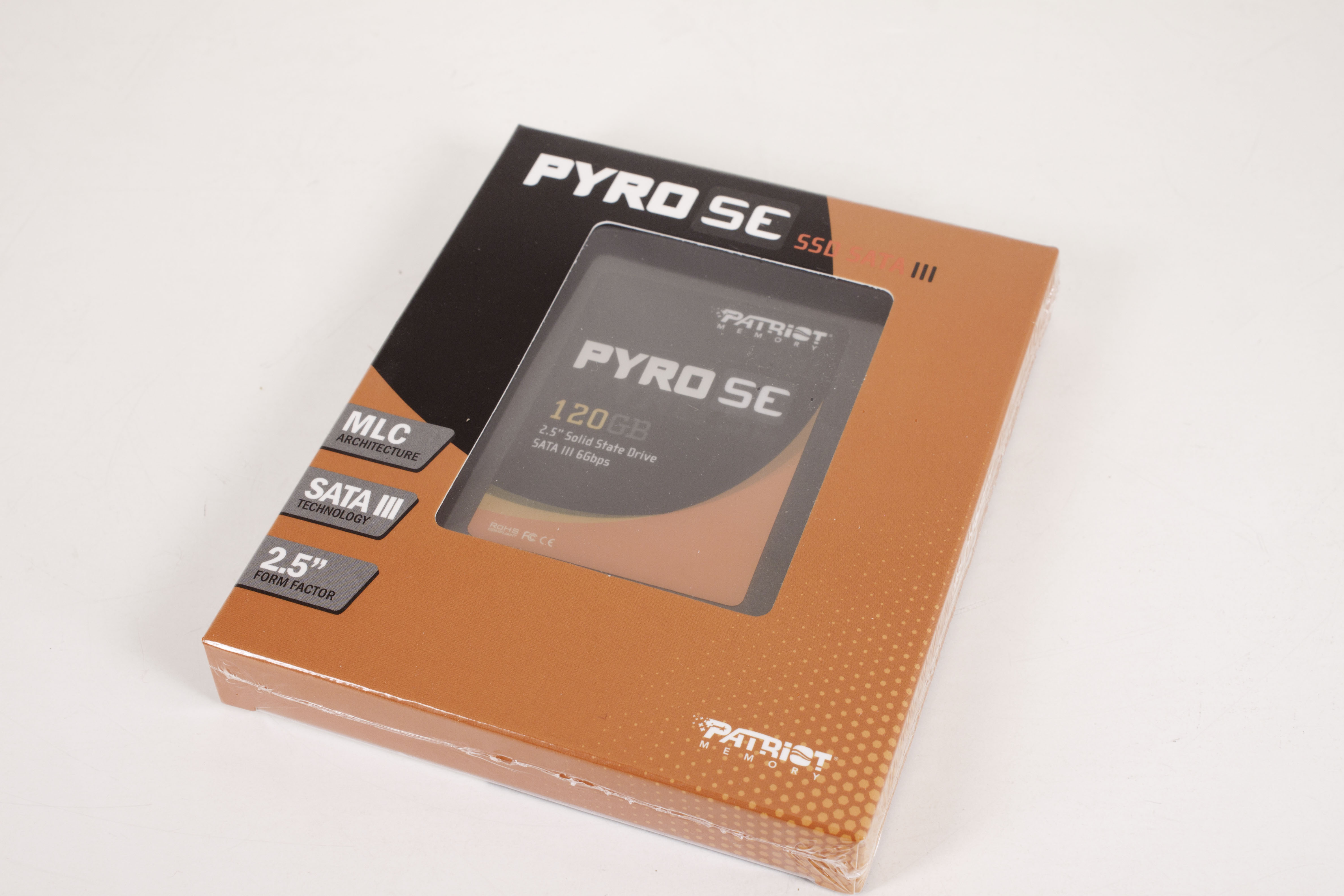

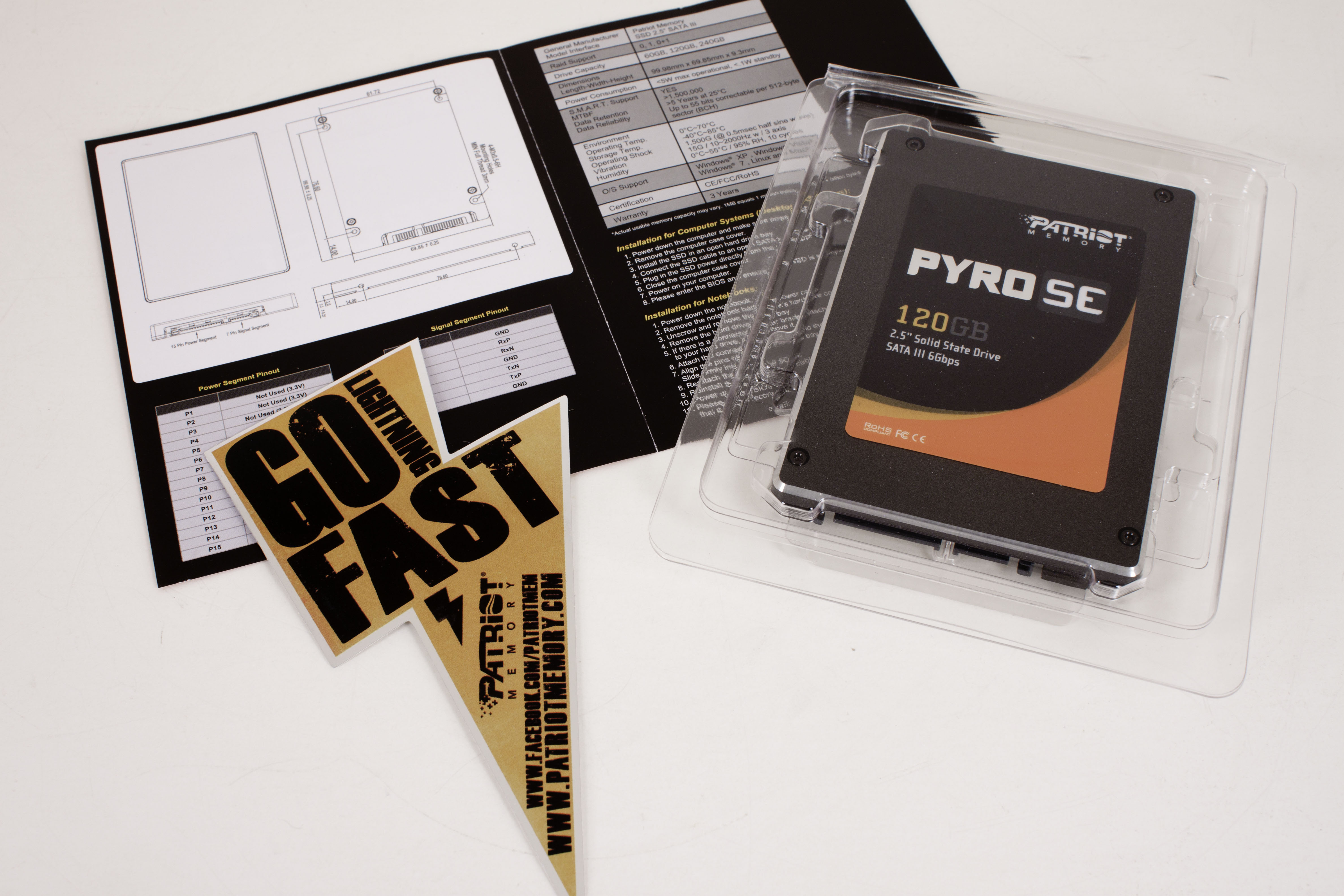

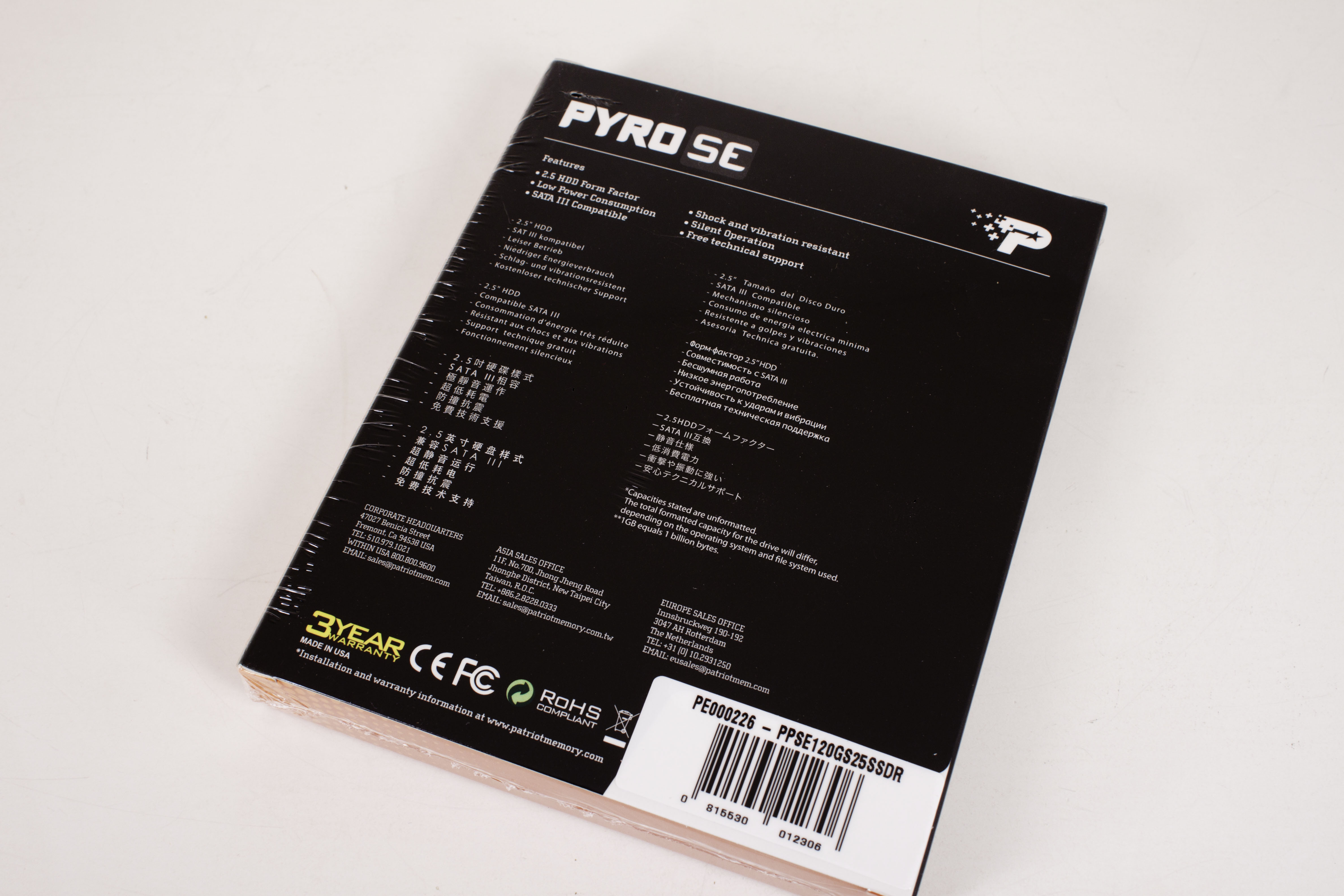

The kit we have in for testing is a standalone drive. Because of this there is not really much to it. The box is thin and not much bigger than the PyroSE itself. Patriot did throw in a nice sticker, but really you are buying this for the drive so other items are not needed.

We do wish they had included an adapter tray for this though.

The Patriot PryoSE 120GB -
Once again we have a 2.5-inch MLC NAND Synchronous Flash drive with a SandForce SF2281VB1 SATA 3.0 controller at its heart. Unlike the two we looked at from Kingston the PyroSE has the other half of the IMFT (Intel Micro Flash Technologies) brain trust. The Pyro SE has Micron 29F128G08CFAAB. These modules are rated at 3,000 P/E which is normal for 25nm MLC NAND flash modules. They are also less expensive than the Intel flavor we saw on the Kingston SSDs.

Unfortunately the PyroSE resisted our urge to open it (we did not have the correct tip to remove the screws at the time of writing) so we do not have images of the inside for you at this time.

Still from what we can tell this is a drive that should have good performance and normal endurance (as far as program and erase cycles). So let’s get into the performance side of the review.

Performance -
Testing the performance of a drive of any type is a pain. Sure you can get repeatable numbers using a few of the more readily available testing utilities; HD Tune Pro, Sisoft’s SANDRA, AIDA64, and others. For our testing we decided to run HD Tune Pro along with Atto Bench and PCMark7’s storage tests. Between these we felt that we were able to compile a good range of information about the performance of the driver under synthetic workloads. To add to this we did a large disk to disk 30GB file transfer (moving from one SATA 3.0 SSD to the test drive and back) to get a good feel for real world read and write performance. The results are shown below in graph form as well as the actual screen shots of the results.

PCMark7 Storage Tests -
The PCMark 7 suite of storage tests is fairly intensive and includes scanning for malware, moving images, a video editing script and more items that require good HDD read and write speeds each one of these has its own transfer rate that will be recorded and combine to make up the overall score.

The Patriot PyroSE does very well here in our PCMark7 testing. We were surprised to see that it was able to run faster than the Intel flash memory in the Kingston 5K. This is good news if you are looking to use this drive as a boot drive or for image storage (small video files or pictures)

Atto Disk Benchmark -
Under the Atto disk bench you get a series of tests run against the drive which have different sizes from 05KB to 80MB. We recorded the maximum transfer rate for both read and write. This was independent of the transfer size.

Again the PyroSE does a good job with write times that match the HyperX 5K drive and read speeds that are faster than any other SSD we tested.

HD Tune Pro 4.6 -
HD Tune Pro is another application that can give you the run down on your HDDs it performs both read and write tests although its write test is destructive and cannot be run on a drive that contains any partition information. For our testing here we ran both the read and write tests and recorded the average transfer rates.

For HD Tune the PyroSE again comes in right behind the Kingston 3K drive with good read and write times. You could certainly count on this drive for minor video editing and it would make a great caching drive for programs like Photoshop or Premiere Pro.

HD Tune Pro 4.6 Read	HD Tune Pro 4.6 Write

Real-World file transfer -
As a final test we took two 7.4GB ISOs and moved them from the main system HDD (a Kingston SH100S3B on the SATA 3.0 Controller) to the target drive. This was timed and the max transfer time was recorded. We also took the time for some subjective testing to see how fast the drives “feel” The scores and our observations are below. For the transfer of 15GB of data from one drive to the other internally it took around 85 seconds with a high transfer rate of 359MB/s. This is very good in terms of moving large files around the drive or from drive to drive. Again this performance holds up our comment that this would be a great boot drive or for use as a cache drive for adobe products.

After our fun moving files around we tried and installation from an .ISO mounted on the target drive as well as from loose files on the target drive. The PyroSE performed very well here with no issues and was much faster than using the original media (we installed LightWave 3D 9.6 which we have in both formats). Even when installing from an ISO directly back to the PyroSE we had no issues in terms of performance.

Value -
Value is another very subjective topic. What is expensive to some might be a deal to others. You can look at this topic in multiple ways. One is raw price and the other is what you get for the money. Each is accurate and both are correct ways to look at price/value. We tend to look at features, performance and real-property when we discuss value. However, we also take into account the raw cash cost of the item. The standalone Patriot PyroSE will run you about $150 from Newegg.com or another etailer. This is a good price for this drive considering the performance, but the fact that it is missing a drive adapter is a little frustrating and brings the overall value down a little. There are too many cases that still do not have spots for 2.5-inch drives not to include a tray these days.

Conclusion -
What can we say about the PyroSE that we have not already commented about. It is a very fast drive and will take care of your data. The inclusion of the SandForce controller (possibly the best on the market) makes it attractive as does the use of the Micron 25-nm MLC NAND Synchronous flash memory. The $150 price tag is great, although we truly wish Patriot had included a 3.5-inch adapter tray. We will not hold that against them though especially considering the performance that we got.

The Patriot PyroSE 2.5-inch 120GB SSD has met all the requirements to earn our Gold Key Award with its performance and price point.
