Gigabyte (as we have told you) is working on remaking their image. They want to be known as a company that builds components for the enthusiast. They are, and have been, working very hard to reach this goal. Their Ultra Durable series of boards have received numerous awards and accolades from review sites and from people who have bought these boards. We have been fortunate enough to review a couple of these and have given you our thoughts on the GA-890FXA-UD7 and are working on a revised impression of the GA-P55A-UD7 as well. For now we are going to move from the big to the small. This is the H55N-UBS3 a Mini-ITX board that features the Intel H55 Express chipset, USB 3.0 and a few Gigabyte special features. Follow along as we dive into this $104.99 board and see if size does not matter.
Section III - Performance Tests, Real-World Here we have two tests that are designed to put the performance of the motherboard and its subsystems to the test. Both require good CPU, Memory, HDD and even to a lesser extent audio and network performance. The two tests we chose were Lightwave 3D 9.6 and AutoGK 2.55. We will be adding at least one more real-world test to this battery in the near future, but for now these two cover quite a bit.
Lightwave 3D 9.6 x64Lightwave is another industry standard application for 3D animation and rendering. It has a large tool base and the rendering engine is highly threaded (when using the right render model). This application is also capable of expanding to 4k resolutions as well as ray tracing for rending the light sources. For our testing we use frame 470 of the Pinball scene found in the LW 9 Content folder. This uses the newer perspective camera that is better suited to a multi-CPU/Core environment. This camera style also uses ray tracing and a much improved anti-aliasing method. Settings are shown below in the attached screen shot. Of course these are single frame renders and they are not a complete picture; for that you have to take into account the number of frames an average project would have. In a typical 30 second commercial you will have around 840 to 960 frames (at 28 – 32 FPS) this means that you have to multiply the time of a single frame by that number just to get a vague idea of how long that 30 seconds would take. This is because each frame will have a different render time based on complexity.

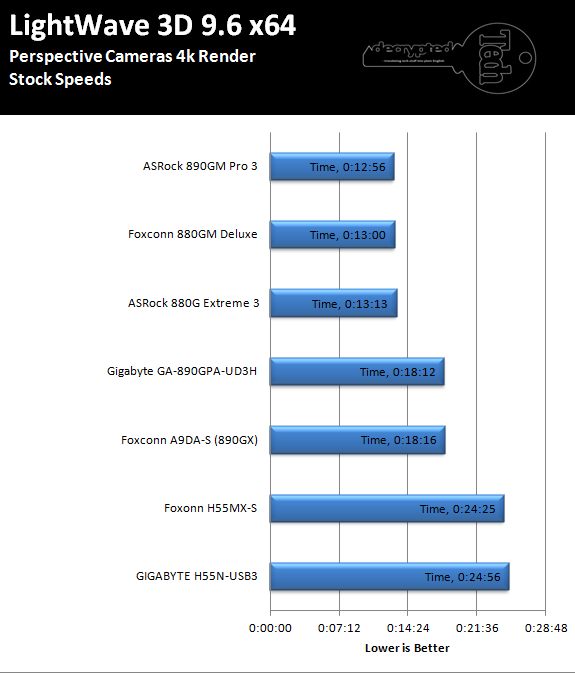

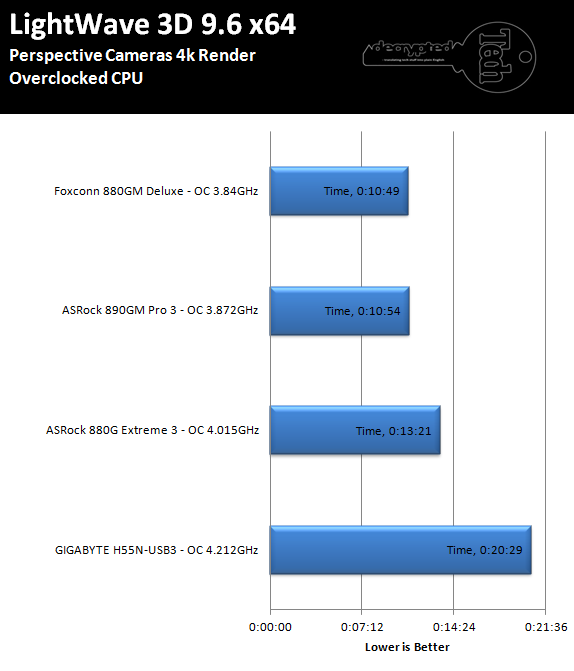

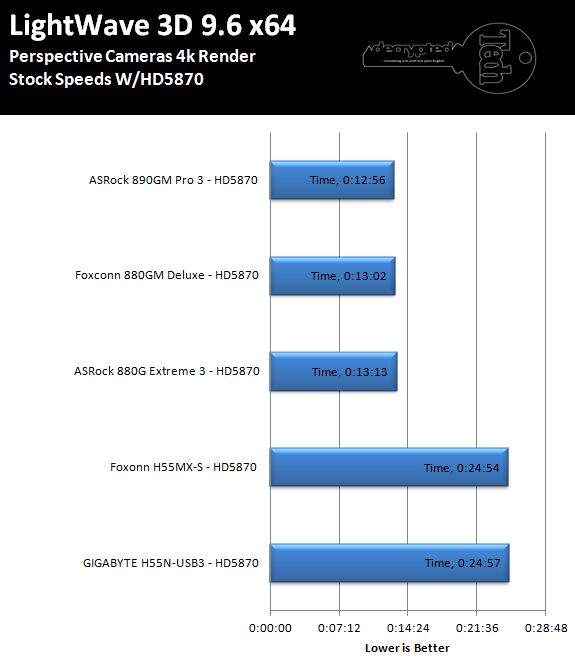

Slow about sums up the Lightwave performance from the Core i5 661 and the H55N-USB3. It comes in last place for all three test runs. Of course this is with a CPU that is not aimed at the workstation crowd. It is possible (and likely ) that we would see better performance with a more capable CPU.
AutoGK 2.55 TranscodingAutoGK is a transcoding software that is really multiple parts combined to make an easy to use whole. It combines, items like FDD Show, Xvid encoder, Virtual Dub and others for use in converting one media format to another (usually Xvid AVI). It will not transcode copy protected DVDs or Bluray discs yet (you still need a decrypter for that). But it does an excellent job on everything else. For our testing we use a 2 hour movie that has been placed onto a standard definition DVD for playback; we then transcode this DVD to a 100% quality AVI with the original audio intact. This puts a strain on the CPU, Memory, HDD and the attached DVD ROM drive.

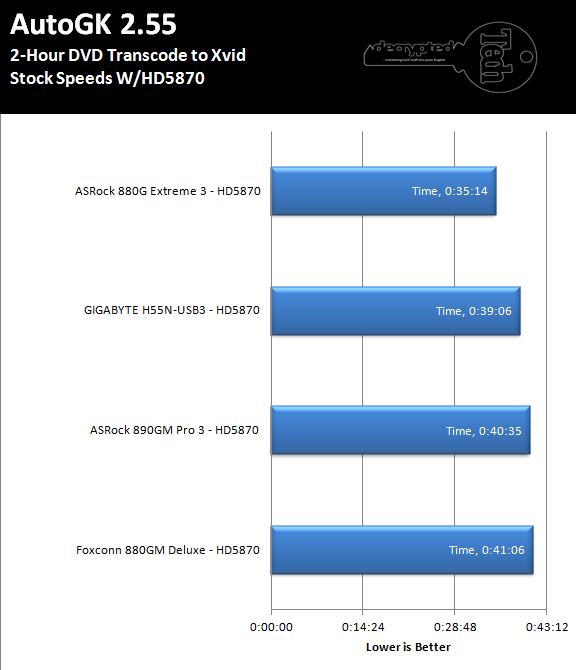

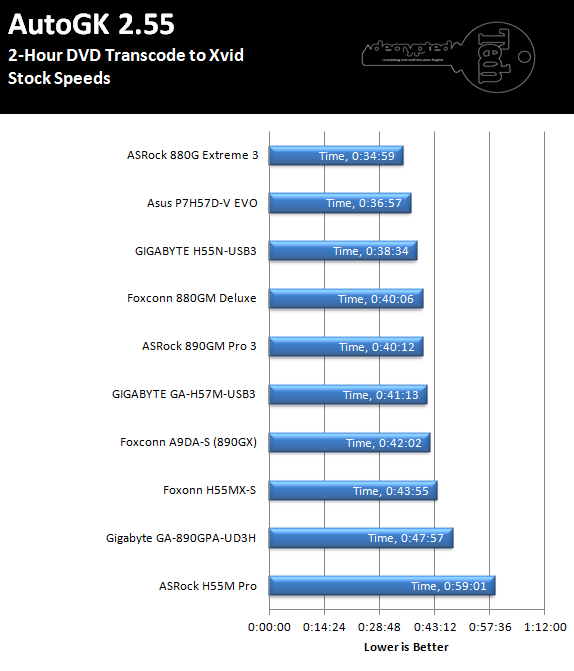

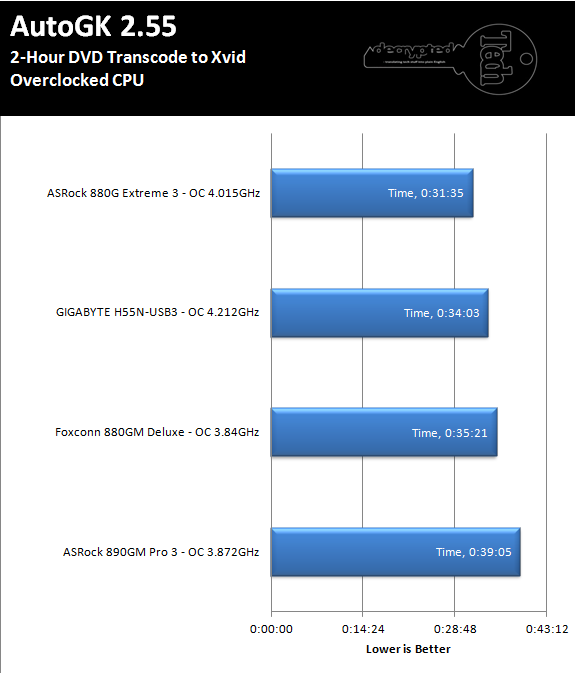

The transcoding performance on the H55N-USB3 is not bad. It manages to keep pace with boards that often have much better power regulation setups (due to the available space). It even manages to outperform a few of the AMD boards with a quad core on them.
