Asus' P9X79 Deluxe Performance puts it at the top of our X79 List - Performance Part II

board07One of the things that make Asus products so enticing is simply the number of add-in features that you get with almost every level of product. I am not sure if all of these features would ever be used by one single consumer, but they are there and all of them work. These little extras can make it challenging to properly review an Asus board (they certainly take more time to test out properly) as most of these are not just simple software adds. With the launching of Asus’ X79 line up the feature list increased as Asus pushed more of the ROG line’s signature items down into the top level of the mainstream products. It makes for some very well rounded products. While we were busy testing out the normal feature set we also had to find ways to cover some of the new items like SSD caching and USB 3.0 Boost for both performance and ease of use. We have already told you about the features, let’s get into the performance numbers and see what we have with the Asus P9X79 Deluxe.

Section II - Performance Tests, Synthetic
In this section of testing we cover the synthetics. These are tests that run a scripted sequence of internal APIs or that use another installed application to perform a series of scripted events. They are great in that they can provide reproducible results across various platforms. On the down side, synthetic tests can be fooled with driver tweaks and optimizations. In some cases it is necessary to rename the .exe file to something generic to discover if this is the case. In any event when this is needed (when a test shows a drastic difference in performance over the renamed exe) we will note this and show both results for comparison.

PCMark7 -
PCMark7 is the latest general performance test from FutureMark. As each generation of this benchmark has evolved and developed we have watched them add more and more realistic tests to this suite. With this generation we find more media tests, (audio and video transcoding) moving of large files, multiple web page rendering, and much more (the even added DX10 gaming). We use the Overall Performance and Common Usage suites in our testing.

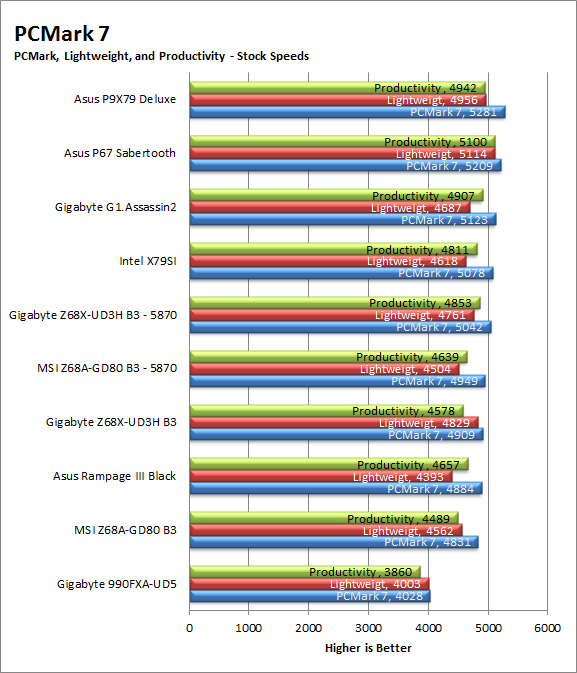

pcm7
For our PCMark 7 testing the P9X79 Deluxe pulled out into the lead over all of the other boards in the group. This is a good sign for general usage and shows that the extra memory bandwidth was able to overcome the slower HDD speed.

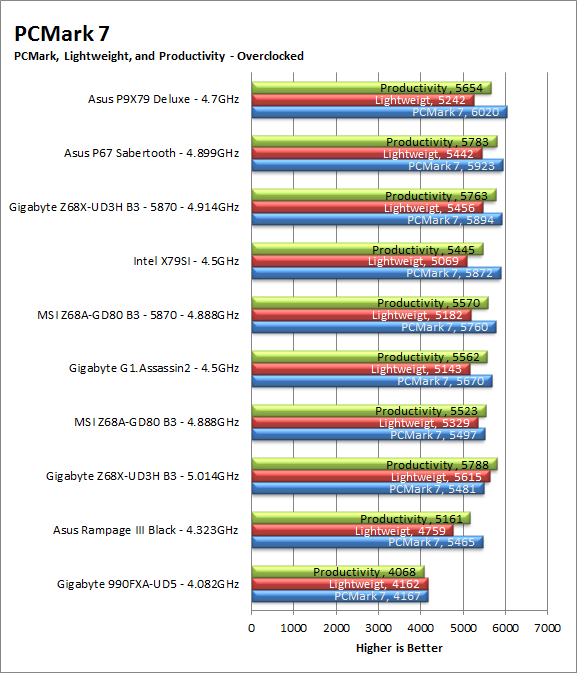

pcm7-oc
3DMark 11 -
3DMark 11 is the other Futuremark test that we run on our motherboards. This test simulates the typical tasks that a GPU (and system) would have to perform to provide you with a good gaming experience. It is based on the DX9, DX10 and DX11 engines but can only be installed on Windows Vista or later. The suite of tests covers DX9, DX10, and of course DX11 rendering; it also covers AI computations and physics. That’s right I said Physics the latest version of 3DMark uses a Havok physics engine. This removes the advantage that nVidia had with 3DMark Vantage.

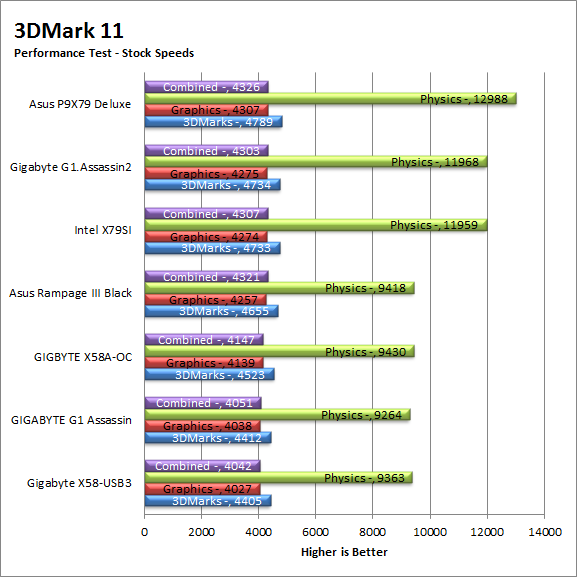

3dm
Under 3DMark the P9X79 Deluxe is once again out the front. This is nice to see and could be an indication that we will see some solid gaming performance later.

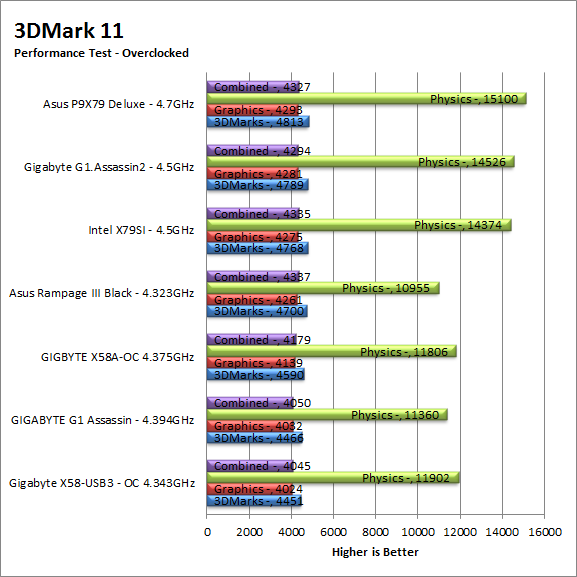

3dm-oc
HyperPi 0.99b -
HyperPi is a front end application that allows you to easily run multiple instances of the SuperPi application. SuperPi, for those that are not familiar with it, is an application that measures the time it takes to calculate the number Pi out to as many as 32 million places. This calculation is then checked and run multiple times (up to 24 for a 32M run).  This test stresses the CPU, Memory and HDD as data is handed off between the three. If there is a weak link, HyperPi will show it. For our testing we run the 32M test on as many cores (and threads) as the CPU has available.  The slowest CPU time is then recorded.

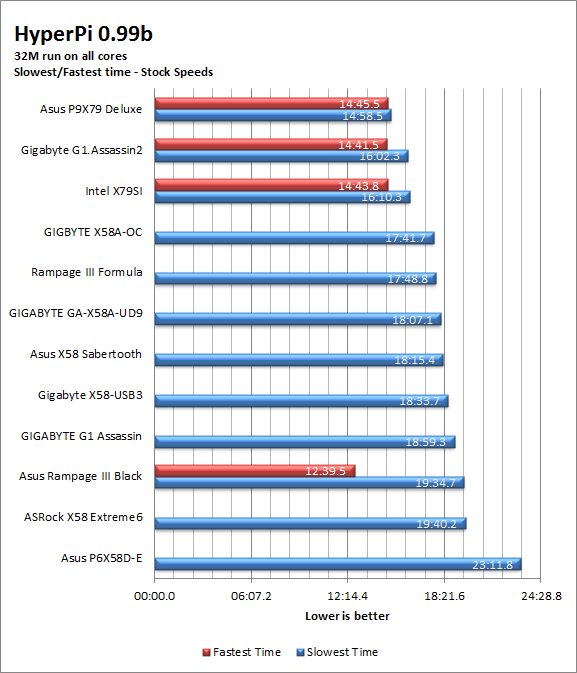

hpi
Ok now here we can see the impact of having fast memory performance and a good tracing design. The signals from the memory to the CPU and then to the HDD are clean and quick. Because of this you are seeing very solid HyperPi times. At stock the P9X79 Deluxe is over a full minute faster at its slowest. This is a VERY good sign for content creation and also rendering video and audio files.

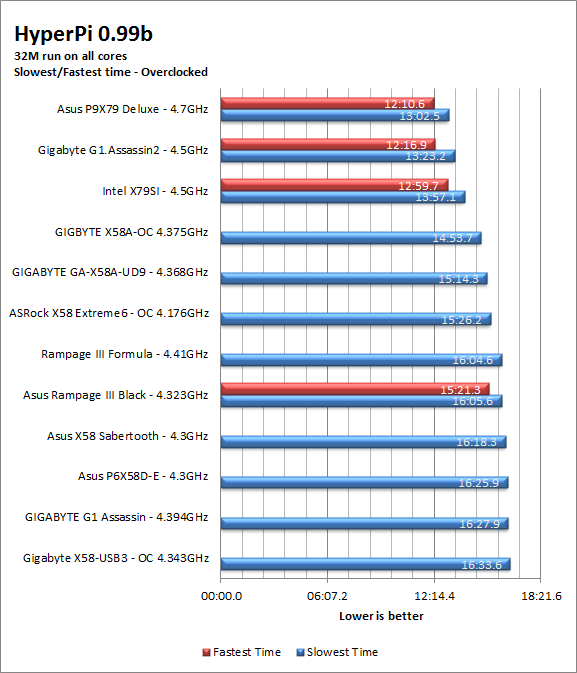

hpi-oc
Cinebench R11.5 -
Cinebench R11.5 is the 11th release of Maxon’s rendering test. This test is based off of the Cinema 4D engine, which is one of the industry standard tools for digital animation. It is a powerful product with many different modules that can be “plugged” into it to increase its effectiveness. With Cinebench you get to see how your computer would do using this application. There are two tests; one tests the CPU’s ability to render an image across multiple cores or threads. The other tests your systems ability to handle OpenGL based rendering.

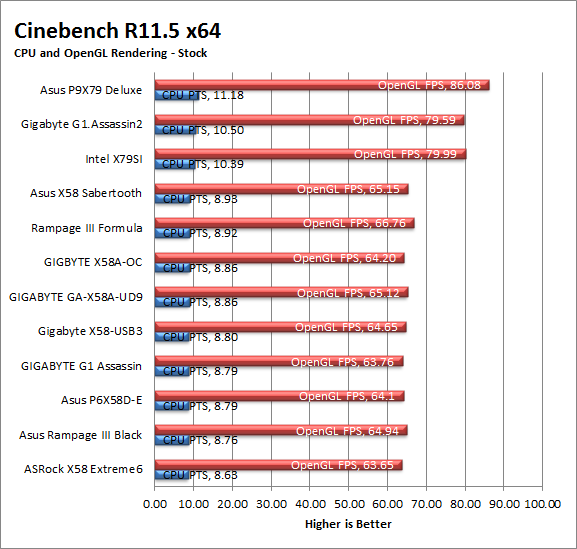

cb
Again we find the Asus P9X79 Deluxe out in the lead in a performance test. This one also shows off the efficiency that Asus has in both the BIOS performance tuning and also the tracing layout.

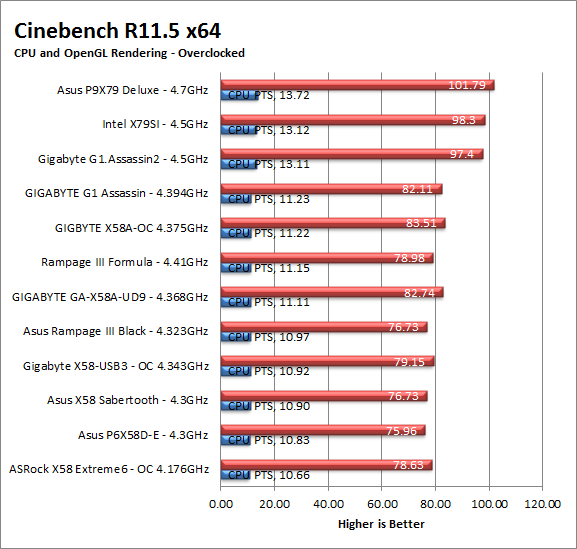

cb-oc
