One of the things that make Asus products so enticing is simply the number of add-in features that you get with almost every level of product. I am not sure if all of these features would ever be used by one single consumer, but they are there and all of them work. These little extras can make it challenging to properly review an Asus board (they certainly take more time to test out properly) as most of these are not just simple software adds. With the launching of Asus’ X79 line up the feature list increased as Asus pushed more of the ROG line’s signature items down into the top level of the mainstream products. It makes for some very well rounded products. While we were busy testing out the normal feature set we also had to find ways to cover some of the new items like SSD caching and USB 3.0 Boost for both performance and ease of use. We have already told you about the features, let’s get into the performance numbers and see what we have with the Asus P9X79 Deluxe.

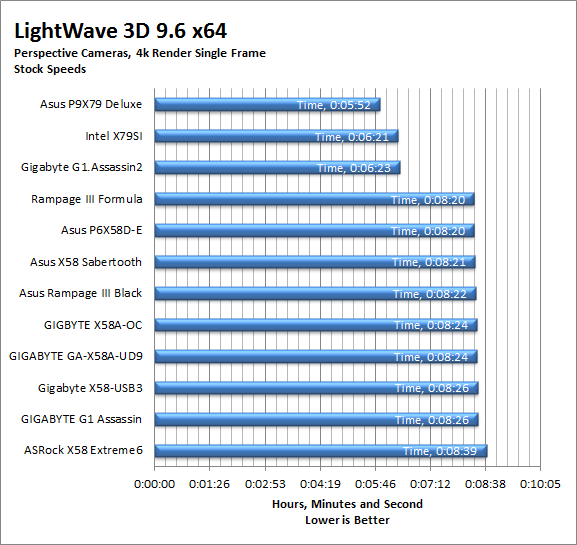

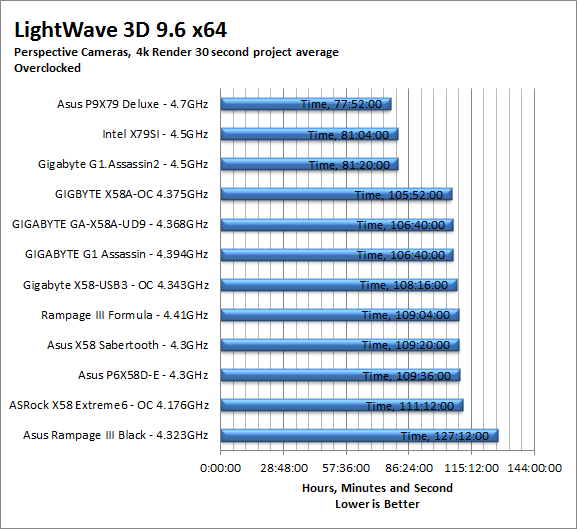

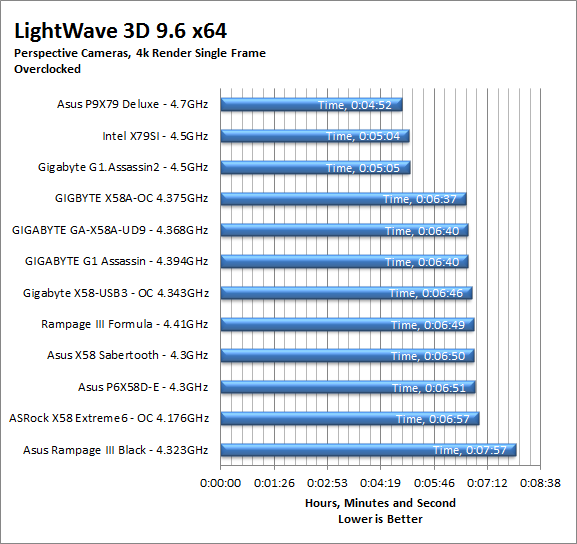

Section III - Performance Tests, Real-World Here we have two tests that are designed to put the performance of the motherboard and its subsystems to the test. Both require good CPU, Memory, HDD and even to a lesser extent audio and network performance. The two tests we chose were Lightwave 3D 9.6 and AutoGK 2.55. We will be adding at least one more real-world test to this battery in the near future, but for now these two cover quite a bit.Lightwave 3D 9.6 x64 -Lightwave is another industry standard application for 3D animation and rendering. It has a large tool base and the rendering engine is highly threaded (when using the right render model). This application is also capable of expanding to 4k resolutions as well as ray tracing for rending the light sources. For our testing we use frame 470 of the Pinball scene found in the LW 9 Content folder. This uses the newer perspective camera that is better suited to a multi-CPU/Core environment. This camera style also uses ray tracing and a much improved anti-aliasing method. Settings are shown below in the attached screen shot. Of course these are single frame renders and they are not a complete picture; for that you have to take into account the number of frames an average project would have. In a typical 30 second commercial you will have around 840 to 960 frames (at 28 – 32 FPS) this means that you have to multiply the time of a single frame by that number just to get a vague idea of how long that 30 seconds would take. This is because each frame will have a different render time based on complexity.Ok the only thing I have to say here is; we managed a 4k render in less than 5 minutes! That is something that we have not seen before unless we have only run one AntiAliasing pass. The performance here is just impressive; there is no other way to describe it. CyberLink Media Espresso 6.5 -After having various issues with AutoGK and Intel CPUs with more than four cores we have changed our Media Encoding test to use Media Espresso from CyberLink. Although this new utility does not have the same ability to transfer directly from DVD it is still a good test to transfer different media types into a usable format for your iPad, iPod, or other media player. Our test involves using multiple (Six) 20 minute media files and transcoding them for an iPad. This gives us a very good indication of how well a motherboard can handle this type of work load.The P9X79 Deluxe also did a great job at transcoding our video; our data on this new test is somewhat limited but it is nice to know that a 4.7GHz 3960 can still out perform a 5GHz Core i7 2600K. Our guess would be that it is the memory bandwidth here.
